GHXH1215P/CY1

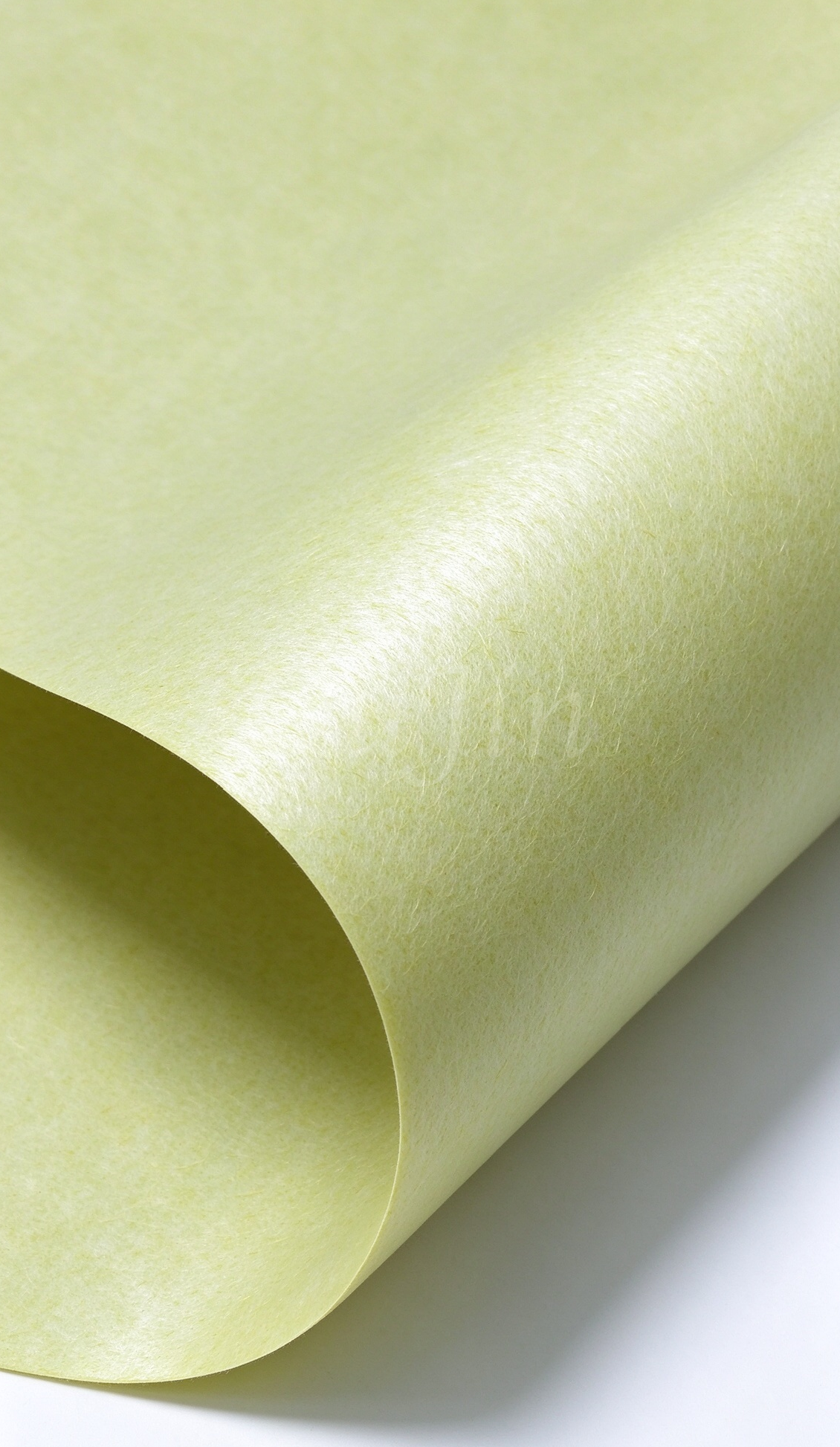

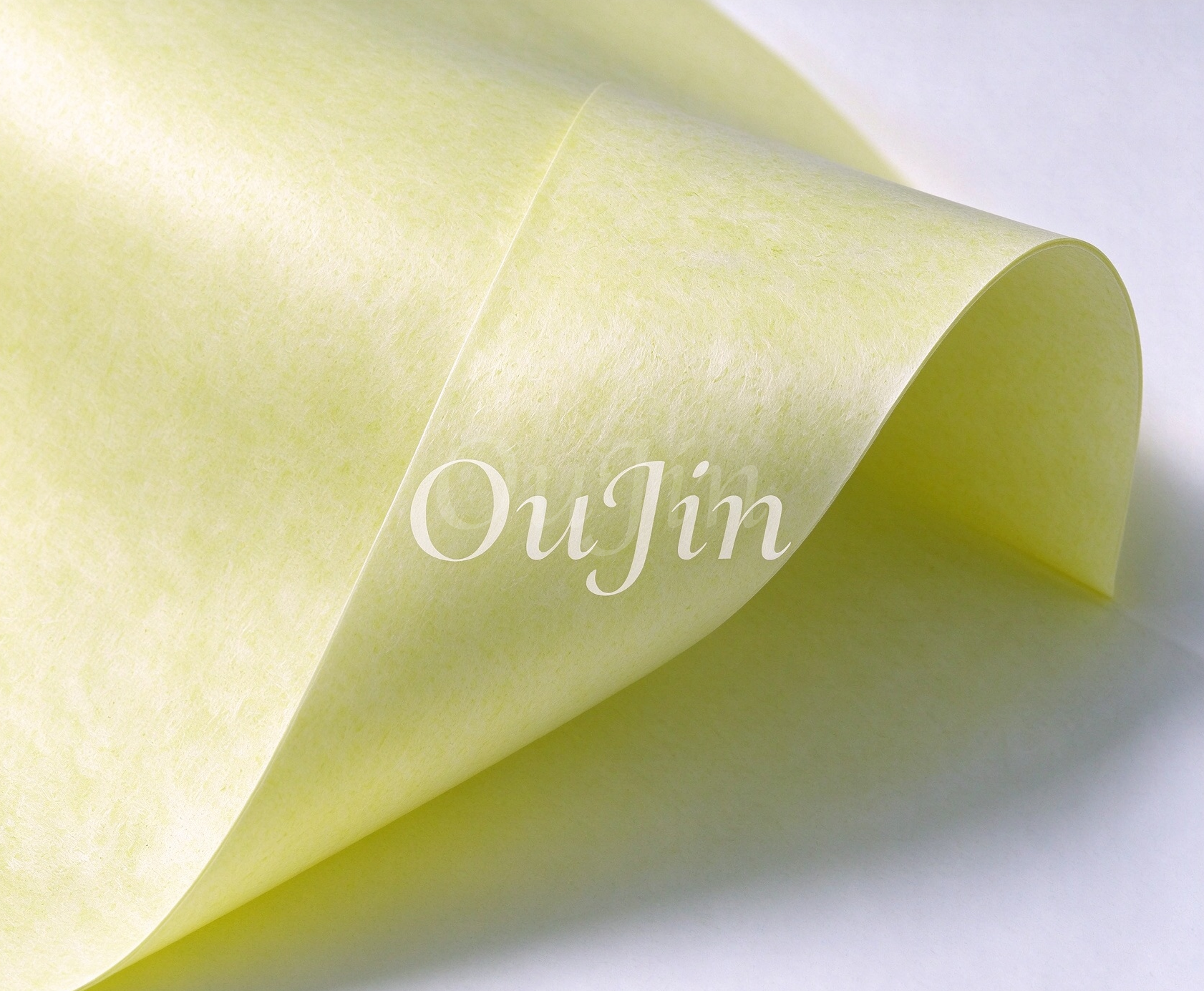

GHXH1215P/CY1 phenolic resin coated filter paper is a professional filter media, impregnated with phenolic resin for outstanding rigidity and enhanced strength after curing. It has excellent burst resistance, stable air permeability and reliable dust holding capacity, widely applied in automotive air, oil and fuel filter elements.
Item | Parameter | Test Standard |
|---|---|---|
Model | GHXH1215P/CY1 | Product Standard |
Resin System | Phenolic Resin Coated Filter Paper | - |
Application | Air / Oil / Fuel Filter | - |
Grammage | 125±5 g/m² before curing 122±5 g/m² after curing | GB/T451.2-2002 |
Air Permeability | 170±30 L/m²·s (△=200Pa) | GB/T25453-1997 |
Thickness | 0.55±0.06 mm | GB/T24218.2-2009 |
Burst Strength | ≥200 kPa before curing ≥260 kPa after curing | GB/T454-2002 |
Stiffness | ≥3.0 mN·m before curing ≥3.8 mN·m after curing | GB/T22364-2008 |
Max Pore Size | 45±10 μm | GB/T2679.14-1996 |
Curing Condition | 170℃, 10 minutes | - |
✅ Phenolic impregnation coating, greatly improved stiffness and burst strength after curing ✅, stable pore structure and uniform air permeability. Resist temperature fluctuation and prevent fiber shedding to ensure stable filtration. Available in sheet & roll form for pleating processing. Direct factory supply, stable mass production, custom sizes & free samples.
Air, oil and fuel filters for passenger cars & light vehicles
Filter elements for light commercial vehicles & small construction machinery
Various industrial air & fluid filtration
We are Hebei Oujin Non Woven Technology Co., Ltd, an original filter paper manufacturer. Trial orders and bulk purchases are supported. Strip & sheet cutting available, free samples for testing.
