GH1580N/CY1/24

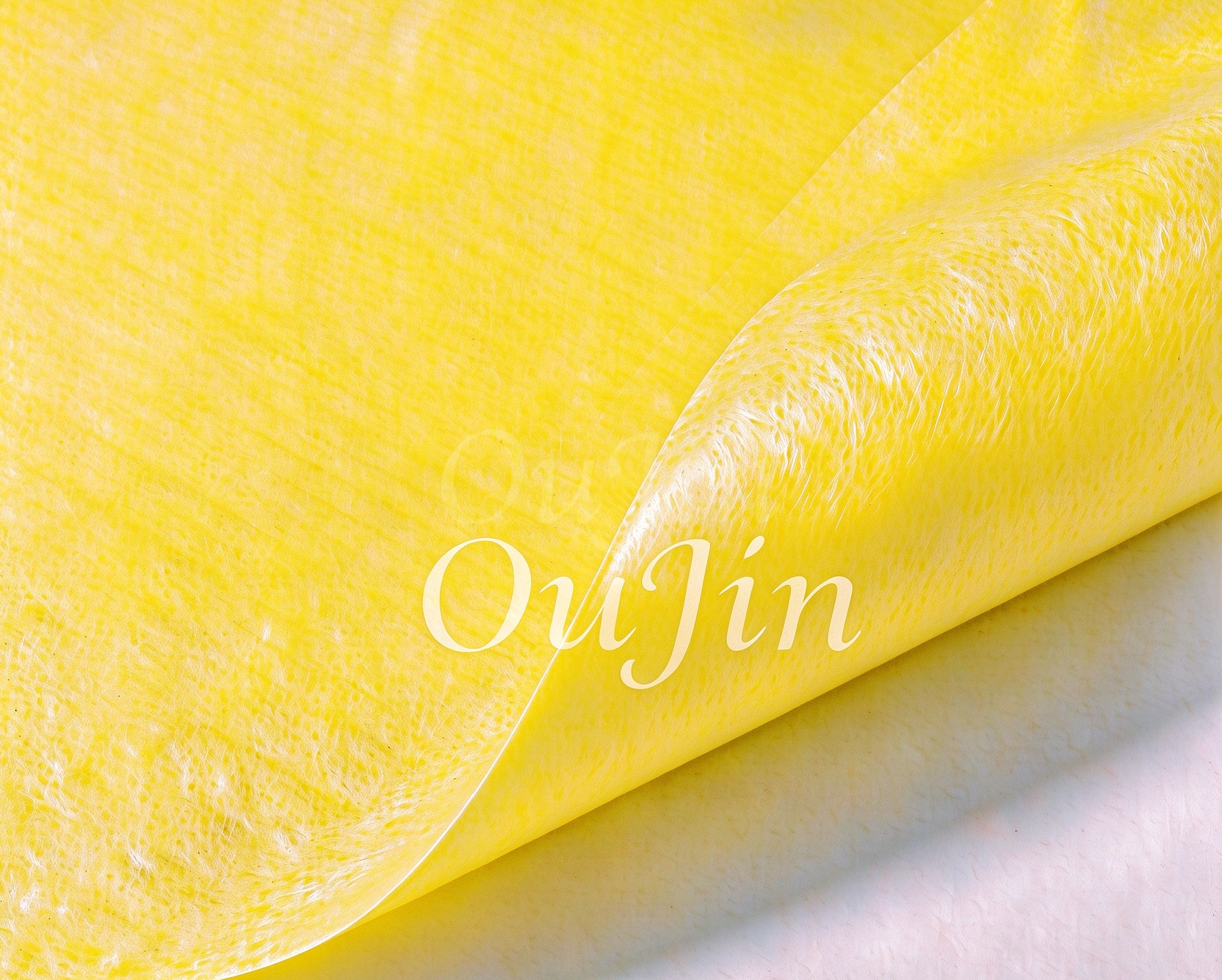

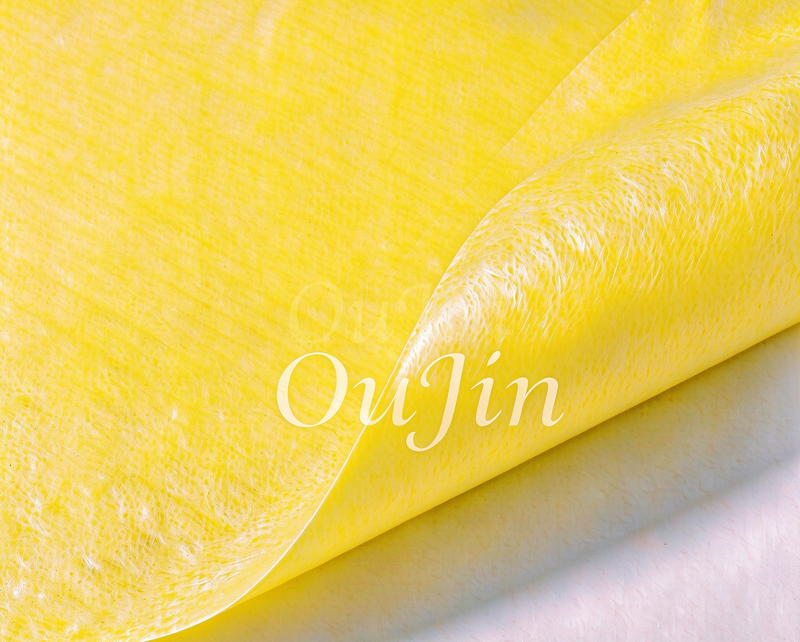

GH1580N/CY1/24 Phenolic Resin Coated Filter Paper is high-performance filter media. Treated by phenolic resin impregnation and coating, its rigidity greatly improved after heat curing at 170℃ for 10 minutes. It has excellent burst resistance, stable air permeability and reliable dust holding capacity. Widely used in automotive air, oil and fuel filter elements.
Item | Parameter | Test Standard |
|---|---|---|
Model | GH1580N/CY1/24 | Product Standard |
Resin System | Phenolic Resin Coated Filter Paper | - |
Application | Air / Oil / Fuel Filter | - |
Grammage | 150±7 g/m² before curing 145±7 g/m² after curing | GB/T451.2-2002 |
Air Permeability | 800±80 L/m²·s (△=200Pa) | GB/T25453-1997 |
Corrugation Depth | ≥0.25 mm | GB/T451.3-2002 |
Thickness | 0.85±0.08 mm | GB/T24218.2-2009 |
Burst Strength | ≥180 kPa before curing ≥220 kPa after curing | GB/T454-2002 |
Stiffness | ≥4.8 mN·m before curing ≥5.8 mN·m after curing | GB/T22364-2008 |
Max Pore Size | 100±10 μm | GB/T2679.14-1996 |
Curing Condition | 170℃, 10 minutes | - |
✅ Phenolic impregnation coating, stiffness and burst strength greatly increased after high temperature curing ✅, stable pore structure, high air flow, good temperature resistance, no fiber shedding and strong dust holding capacity. Available in sheet & roll form for pleating processing. Direct factory supply, stable mass production, custom sizes & free samples.
Air, oil and fuel filters for passenger cars & light vehicles
Filter elements for light commercial vehicles and construction machinery
Large ventilation equipment & industrial air filtration
We are Hebei Oujin Non woven Technology Co., Ltd, an original filter paper manufacturer. Trial orders and bulk purchases are supported. Strip & sheet cutting available, free samples for testing.
