GH2040N/CY15
Item | Parameter | Test Standard |
|---|---|---|
Model | GH2040N/CY15 | Product Standard |
Resin System | Phenol Impregnated Filter Paper | - |
Application | Oil Filter | - |
Grammage | Before SD curing:205±10 g/m² After SDC curing:198±10 g/m² | GB/T451.2-2002 |
Air Permeability | 400±60 L/m² (△P=200Pa) | GB/T25453-1997 |
Thickness | 0.98±0.1 mm | GB/T24218.2-2009 |
Burst Strength | Before SD curing:≥220kPa After SDC curing:≥320kPa | GB/T454-2002 |
Stiffness(Longitudinal) | Before SD curing:≥9.8 mN·m After SDC curing:≥11.8 mN·m | GB/T22364-2008 |
Max. Pore Size | 85±10μm | GB/T2679.14-1996 |
Corrugation Depth | ≥0.25mm | GB/T451.3-2002 |

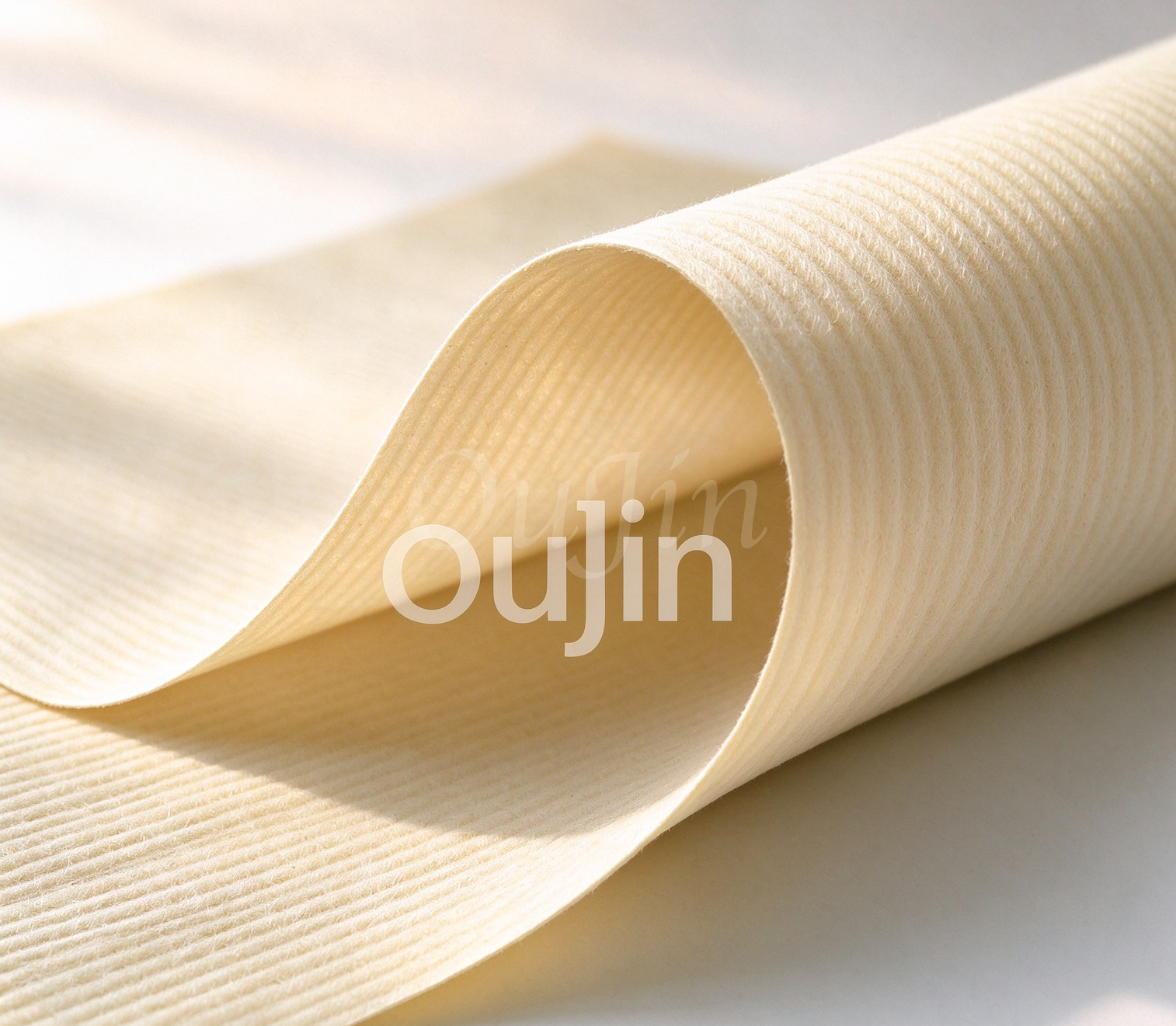

✅Phenolic resin coating & impregnation, high stiffness, no cracking during pleating ✅, excellent burst resistance, stable dimension and good heat resistance after curing. High air flow rate with max pore size 85±10μm, it can effectively trap oil impurities while maintaining high flow, protecting engine oil circuit. Rolls and sheets available, corrugation depth ≥0.25mm, suitable for filter pleating process. Direct factory supply, stable mass production, custom sizes accepted, free samples for testing.
• Oil filters for passenger cars and light vehicles • Oil filter elements for construction machinery • Oil filtration for industrial lubrication systems
We are Hebei Oujin Nonwoven Technology Co., Ltd, professional filter paper manufacturer. Trial orders and bulk orders are acceptable. Slitting and sheet cutting service available, free samples for customer test.
Note: All parameters, sizes, and colors can be customized according to customer requirements.
