GH1217/02H/19

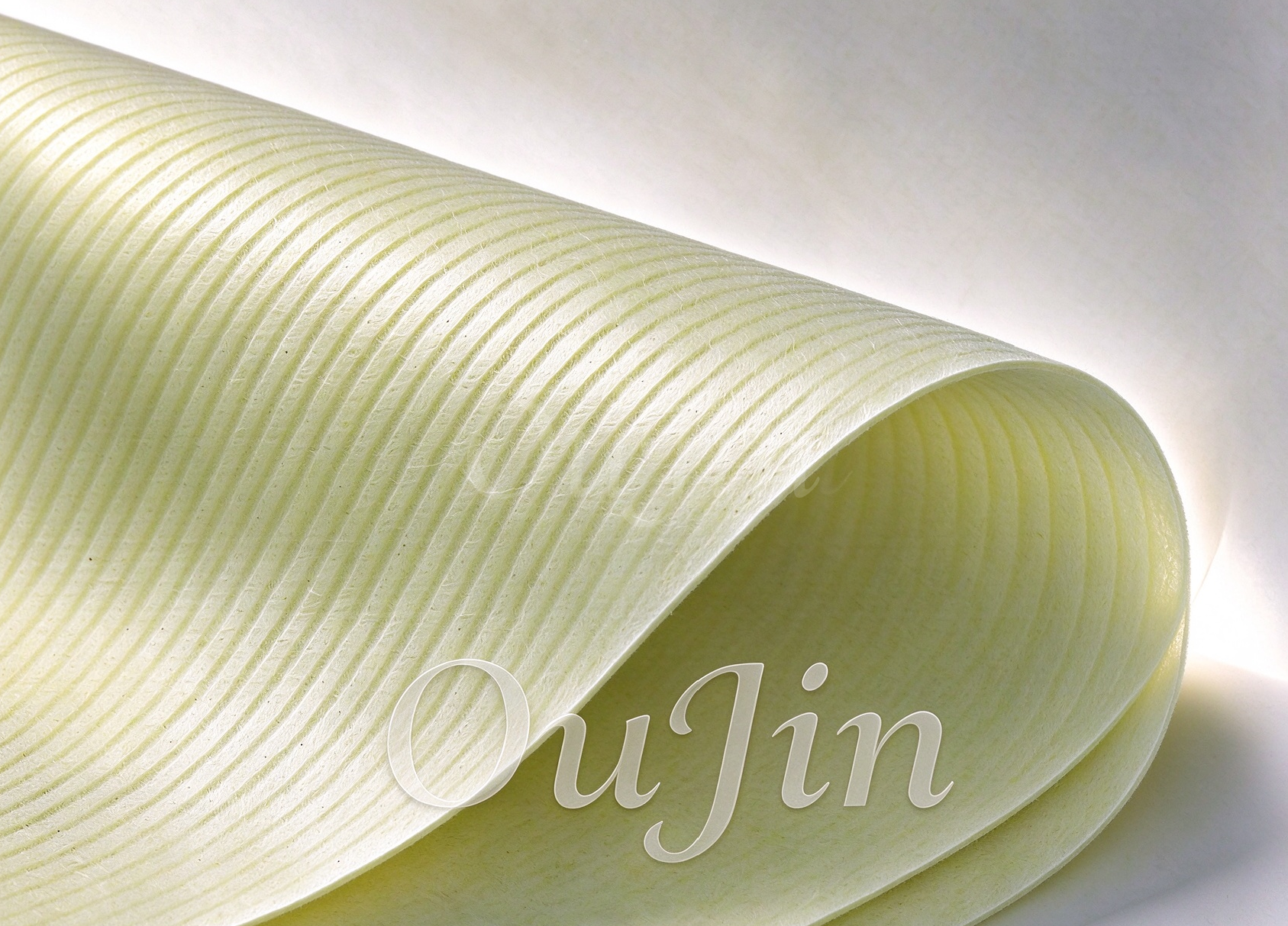

Model GH1217/02H/19 is phenolic impregnated cured oil filter paper. It is treated with phenolic resin coating and impregnation. It features stable grammage, excellent stiffness and high burst strength. It has stable air permeability and reliable oil filtration performance, good heat resistance and stable dimension after curing. Widely used for automotive oil filter elements.
Item | Parameter | Test Standard |
|---|---|---|
Model | GH1217/02H/19 | Product Standard |
Resin System | Phenolic Impregnated Cured Filter Paper | - |
Application | Oil Filter | - |
Grammage | Before SD curing:125±5 g/m² After SDC curing:120±5 g/m² | GB/T451.2-2023 |
Air Permeability | 170±30 L/m² (△P=200Pa) | GB/T 458-2008 |
Thickness | 0.6±0.08 mm | GB/T451.3-2002 |
Burst Strength | Before SD curing:≥200kPa After SDC curing:≥250kPa | GB/T454-2020 |
Stiffness(Longitudinal) | Before SD curing:≥4.5 mN·m After SDC curing:≥6 mN·m | GB/T 23144-2023 |
Max. Pore Size | 45±10 μm | GB/T 2679.14-1996 |
Corrugation Depth | ≥0.25 mm | GB/T451.3-2002 |
✅ Phenolic resin impregnated & cured, high stiffness, no cracking during pleating ✅, high burst strength and excellent thermal stability. Stable air permeability ensures smooth oil filtration. Uniform pore size realizes consistent contaminant retention. Available in sheet and roll form for pleating process. Direct supply from factory with stable mass production, customized size available, free samples offered.
170℃, 10 minutes (10min@170℃)
• Oil filters for passenger cars and light vehicles • Oil filter elements for construction machinery • Oil filtration for industrial lubrication systems
We are Hebei Oujin Nonwoven Technology Co., Ltd, an original filter paper manufacturer. Trial orders and bulk purchasing are supported. Slitting and sheet cutting service available, free samples for testing.
Note: Color, size and all specification parameters can be changed as per customer's requirements.
