GH1340PN/CY4

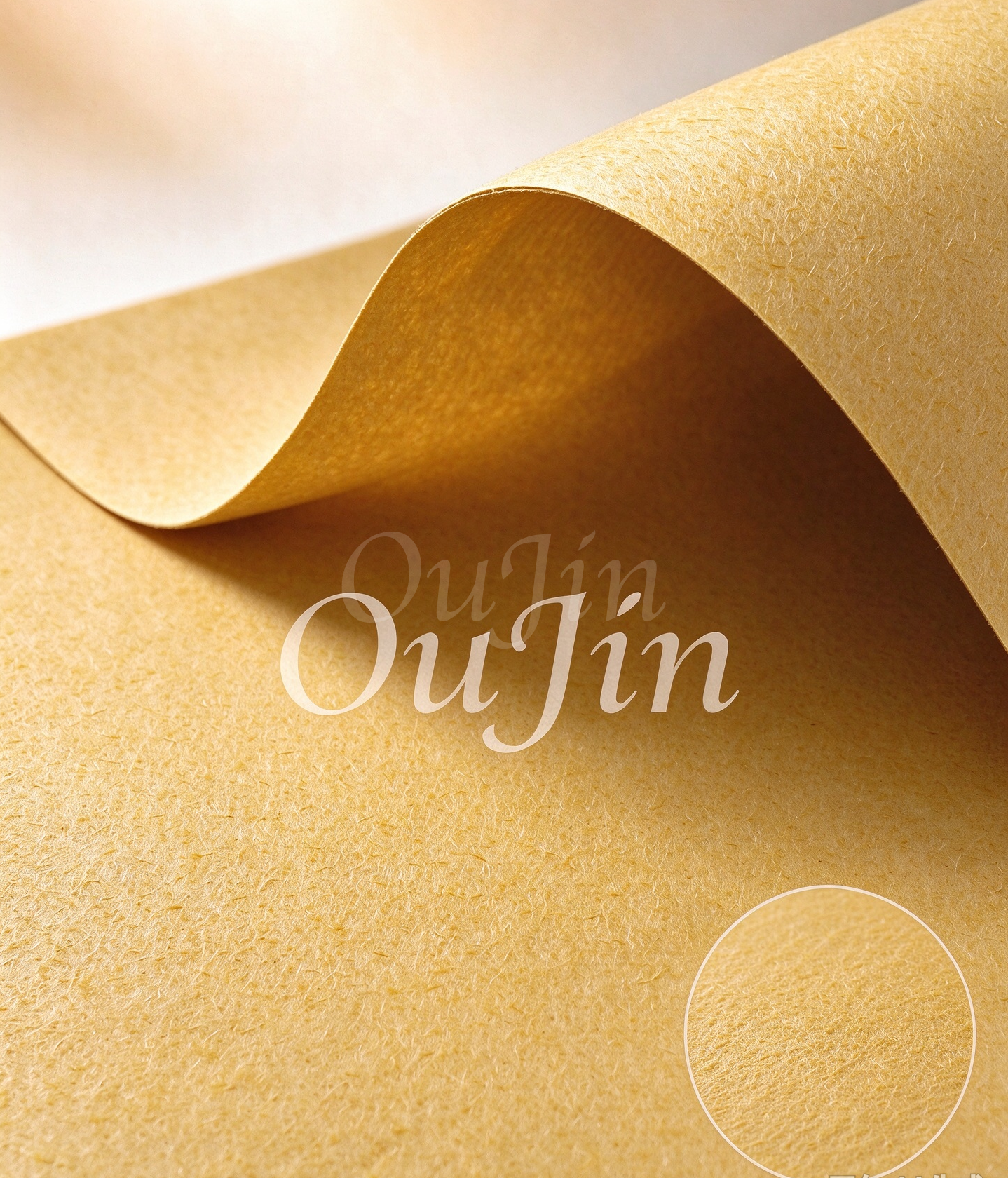

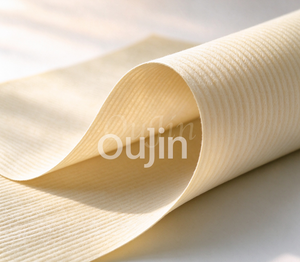

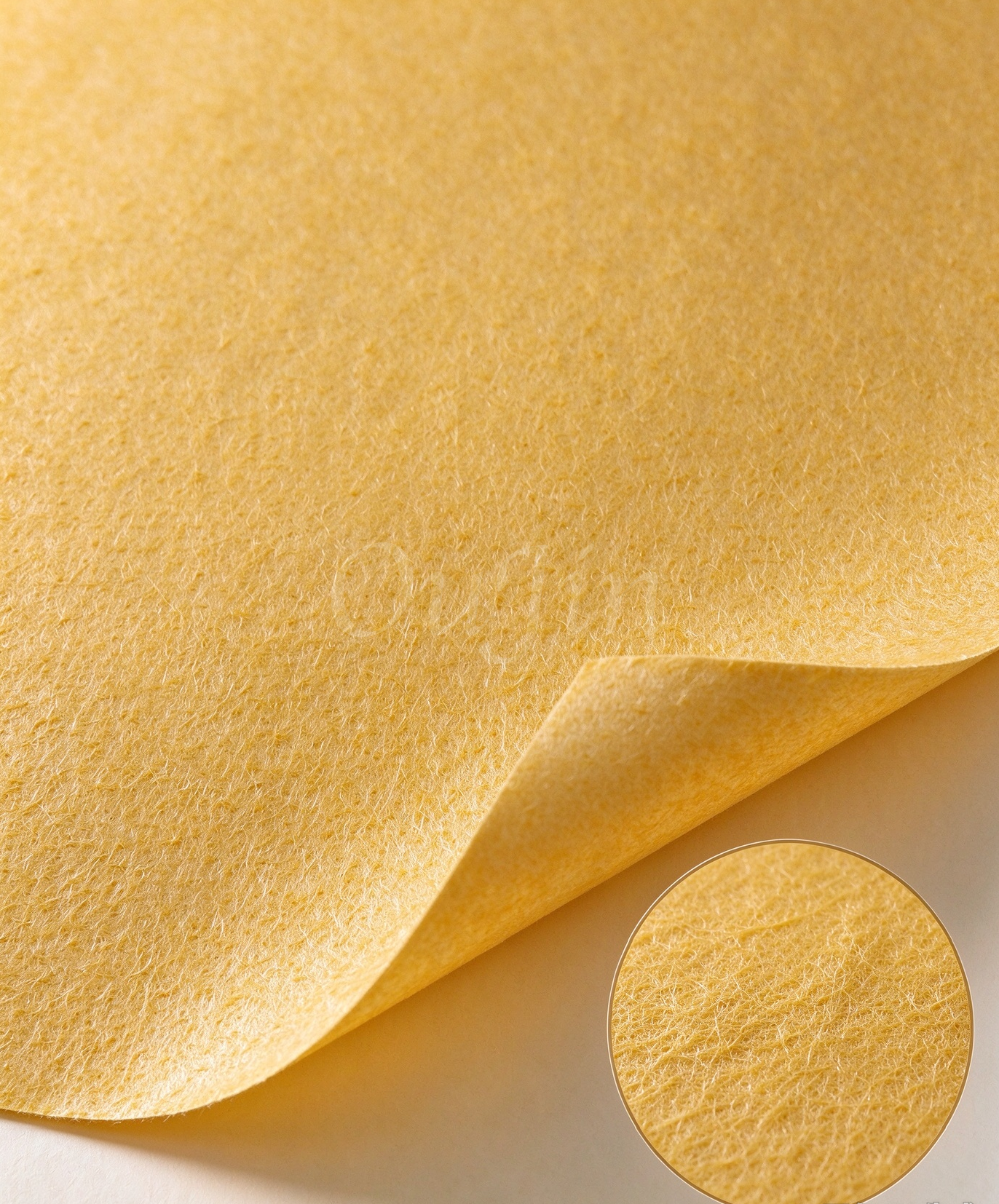

Model GH1340PN/CY4 Phenol impregnated filter paper, treated with phenolic resin. Grammage 136±5g/㎡ before curing and 131±5g/㎡ after curing. Excellent stiffness after curing, suitable for pleating. It has high burst strength, stable airflow and reliable dust holding performance, widely used for air filter elements.
Property | Value |
|---|---|
Grammage | 136±5 g/㎡(SD before curing),131±5 g/㎡(SDC after curing) |
Air Permeability | 400±60 L/(m²·s @200pa) |
Thickness | 0.7±0.08 mm |
Burst Strength | ≥100 kPa(SD before curing),≥200 kPa(SDC after curing) |
Stiffness (MD) | ≥4 mN·m(SD before curing),≥6 mN·m(SDC after curing) |
Max. Pore Size | 80±10 μm |
✅ Phenolic resin impregnation, great stiffness after curing, no cracking during pleating ✅ Burst strength up to 200kPa after curing, firm structure and good damage resistance ✅ Stable air permeability and moderate intake resistance for smooth engine airflow ✅ Uniform pore size for stable dust capture and good dust holding capacity ✅ Rolls & sheets available for slitting and pleating ✅ Direct factory supply, stable batch quality, custom sizes & free samples
• Air filters for heavy-duty trucks and buses • Air filter elements for construction machinery and generator sets • Air filtration for industrial air compressors and ventilation equipment
We are Hebei Oujin Nonwoven Technology Co., Ltd, original filter paper manufacturer. Support trial & bulk orders. Roll/sheet cutting available. Free samples for testing.
