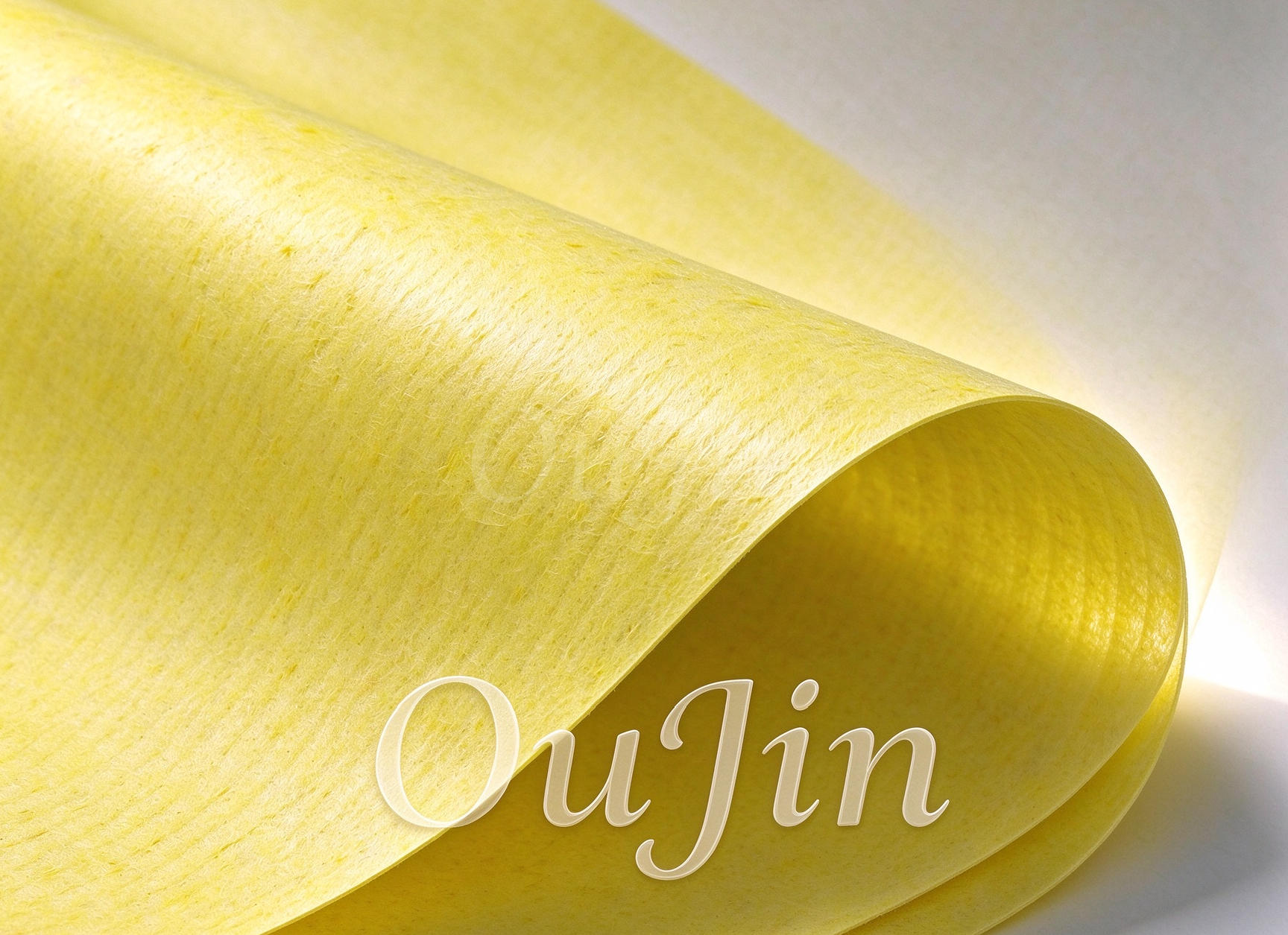

GH2090PN/CY1/22 Phenolic Impregnated Cured Oil Filter Paper For Engine Oil Filter

GH2090PN/CY1/22 phenolic impregnated cured oil filter paper is made by phenolic resin coating and impregnation curing process. It features high stiffness, no cracking during pleating, excellent burst strength, stable dimension and good heat resistance after curing. With stable air permeability and controllable pore size, it can efficiently capture impurities in engine oil and keep smooth oil flow. Both rolls and sheets are available for pleating of oil filter elements. Supplied directly by Hebei Oujin Nonwoven factory. Custom specifications are acceptable, free samples for testing. Color, size and technical parameters can be adjusted according to customer requirements. Widely used in oil filters for passenger cars, light vehicles, construction machinery and oil filtration of industrial lubrication systems.

Quantity:
Availability:





Inquire Add to Basket

Model:
GH2090PN/CY1/22

Product Description

Item	Parameter	Test Standard
Model	GH2090PN/CY1/22	Product Standard
Resin System	Phenolic Impregnated Cured Filter Paper	-
Application	Oil Filter	-
Grammage	Before SD curing:208±10 g/m² After SDC curing:200±10 g/m²	GB/T451.2-2023
Air Permeability	460±60 L/m² (△P=200Pa)	GB/T 458-2008
Thickness	0.95±0.1 mm	GB/T451.3-2002
Burst Strength	Before SD curing:≥220kPa After SDC curing:≥320kPa	GB/T454-2020
Stiffness(Longitudinal)	Before SD curing:≥10 mN·m After SDC curing:≥13 mN·m	GB/T 23144-2023
Max. Pore Size	85±10μm	GB/T 2679.14-1996
Corrugation Depth	/	GB/T451.3-2002

Product Advantages

✅Phenolic resin coating and impregnation cured, high stiffness, no cracking during pleating ✅, high burst strength, excellent heat resistance and stable dimension after curing. Stable air permeability ensures smooth oil flow. Controlled pore size achieves stable contaminant capture in engine oil. Rolls and sheets available for pleating process. Direct factory supply, stable mass production, custom sizes supported, free samples offered.

Application

• Oil filters for passenger cars and light vehicles • Oil filter elements for construction machinery • Oil filtration for industrial lubrication systems

Our Service

We are Hebei Oujin Nonwoven Technology Co., Ltd, an original filter paper manufacturer. Trial orders and bulk purchasing are supported. Slitting and sheet cutting service available, free samples for testing.
