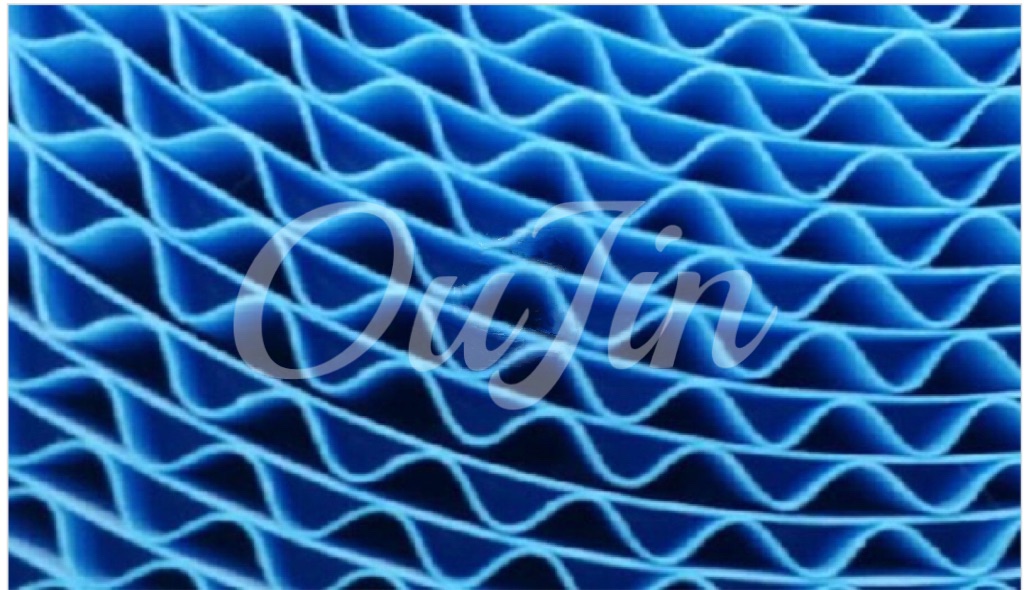

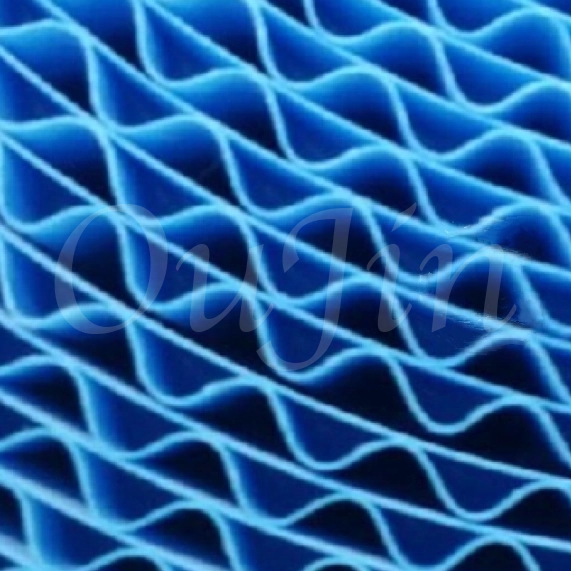

The Honeycomb Filter Paper for Automotive Air Element is designed for use in automotive air filtration systems. Its honeycomb structure enhances the filtering effect by trapping dust, bacteria, and other harmful substances, providing clean air to the engine. This helps maintain engine performance, reduce wear, and prevent damage caused by impurities. The efficient design ensures optimal airflow while achieving high filtration efficiency, contributing to better vehicle performance and longevity.
| Application | Air Filter | |
| Resin System | Acrylic Resin | |
| Model No. | OKA09023-L52P/FW | |
| Test Item | Product Standards | Test Standard |
| Grammage | 90±5g/m2 | GB/T451.2-2002 |
| Air Permeability | 230 ±30 L/m2•s (△=200pa) | QB/T-2006 |
| Corrugation Depth | Plain | GB/T451.3-2002 |
| Thickness | 0.35±0.05 mm | GB/T451.3-2002 |
| Burst Strength | 250±50 kpa | GB/T454-2002 |
| Stiffness | 5±1 mn•m | GB/T2679.3-1996 |
| Max Pore Size | 55±5 μm | QC/T794-2007 |
| Mean Pore Size | 50±5 μm | |
| Note: color, size and each specification parameter can be changed as per customer’s requirement. | ||
High Filtration Efficiency：The honeycomb structure of this filter paper significantly increases the surface area, allowing it to capture a larger amount of particles, including dust, debris, and other contaminants. This results in superior filtration efficiency, ensuring that only clean air enters the engine, which improves the overall performance and longevity of the engine.
Lightweight Design：Designed with a focus on reducing weight, this filter paper contributes to the vehicle's overall efficiency. A lighter filter paper not only reduces the load on the engine but also helps to improve fuel efficiency. The reduction in weight also enhances the vehicle's performance by enabling it to operate more efficiently without compromising on filtration quality.
Enhanced Airflow：This filter paper is engineered to optimize airflow, allowing air to pass through smoothly without obstruction. The honeycomb structure and advanced design promote superior air circulation, which is crucial for maintaining the engine's optimal performance. Improved airflow ensures that the engine receives a constant supply of clean air, enhancing combustion and reducing the risk of engine damage caused by poor air quality.
Long-Lasting Durability：Built with durability in mind, the filter paper is designed to withstand harsh environmental conditions, such as high temperatures and humidity. Its robust construction helps to extend the filter’s lifespan, reducing the frequency of replacements and minimizing maintenance costs. The longevity of the filter makes it a cost-effective choice for vehicles, offering reliable performance over extended periods
