| Quantity: | |
|---|---|

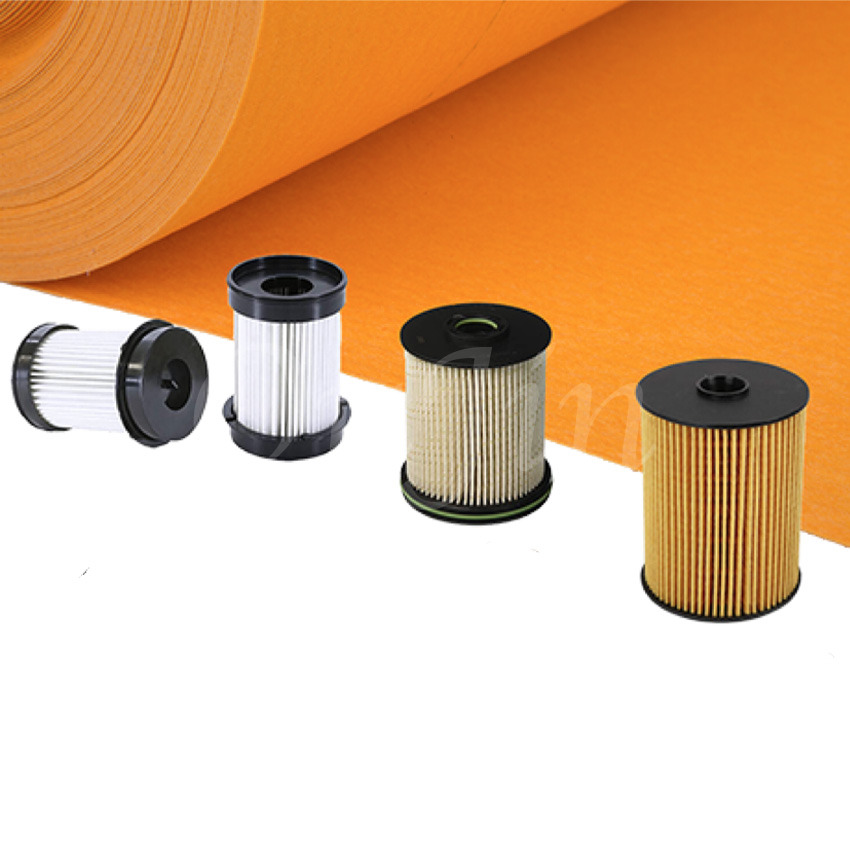

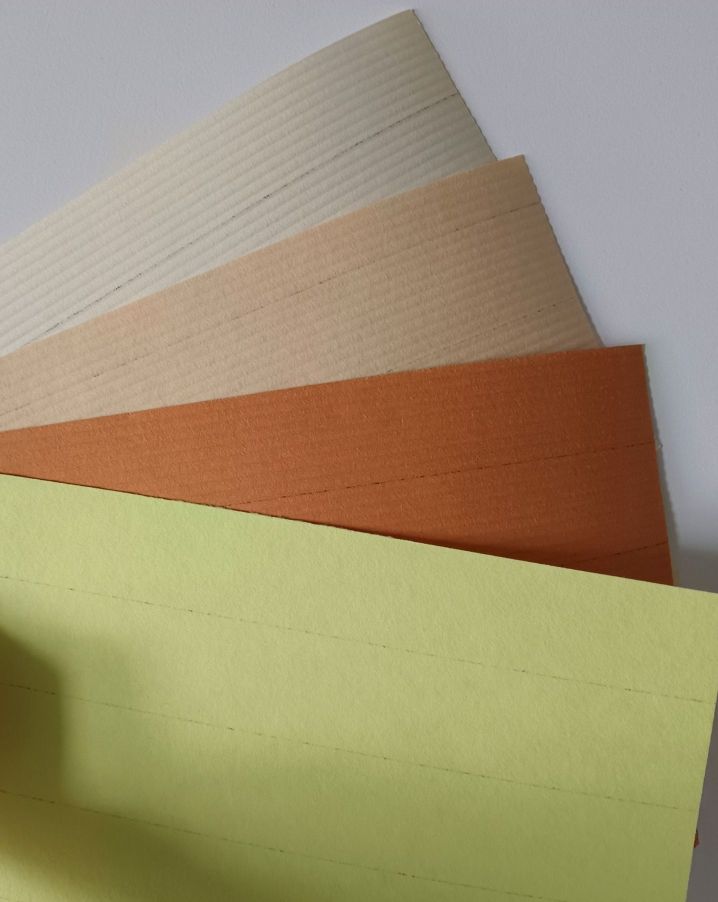

Our fuel filter paper is designed to efficiently remove solid particles and moisture from fuel, ensuring clean fuel for your engine. It offers excellent filtration accuracy, pressure and temperature resistance, and chemical stability. With a long service life, it minimizes maintenance costs and enhances engine performance. Ideal for automotive engines, it effectively filters out contaminants, ensuring smooth operation and preventing fuel system blockage.、
| Application | Fuel Filter | |
| Resin System | Acrylic Resin | |
| Model No. | OJPC-22012/D220 | |
| Test Item | Product Standards | Test Standard |
| Grammage | 220±5g/m2 | GB/T451.2-2002 |
| Air Permeability | 120±30 L/m2•s (△=200pa) | QB/T-2006 |
| Corrugation Depth | Plain | GB/T451.3-2002 |
| Thickness | 0.85±0.05 mm | GB/T451.3-2002 |
| Burst Strength | 500±50 kpa | GB/T454-2002 |
| Stiffness | 25±10 mn•m | GB/T2679.3-1996 |
| Max Pore Size | 39±5 μm | QC/T794-2007 |
| Mean Pore Size | 35±5 μm | |
| Note: color, size and each specification parameter can be changed as per customer's requirement. | ||
| Resin system | Phenolic resin | ||
| Model | OJC-14511-G | ||
| Test Item | Unit | Product standards | Test standard |
| Grammage | g/m2 | SD 固化前 145 SDC固化后 139 | GB/T451.2-2002 |
| Air Permeability | △=200pa L/m2•s | 110 | GB/T25453-1997 |
| Thickness | mm | Total总厚度 750 Caliper纸张厚度 500 | GB/T24218.2-2009 |
| Burst Strength | kpa | SD 固化前120 SDC固化后250 | GB/T454-2002 |
| Stiffness | mn•m | SD 固化前 5.0 SDC固化后6.0 | GB/T22364-2008 |
| Max pore size | μm | 50 | GB/T2679.14-1996 |
| Characteristics: Phenol impregnated Filter Paper Curing condition: 10min@170℃ | |||
| Note: color, size and each specification parameter can be changed as per customer's requirement. | |||
Filtration accuracy: Fuel filter paper can filter out tiny particle impurities in the fuel, protecting the precision components inside the engine from damage
Pressure resistance performance: Even in a high-pressure environment, the fuel filter paper can maintain a good filtering effect, ensuring the stability of fuel supply
Temperature resistance: Fuel filter paper is suitable for various temperature environments and is not prone to deformation or aging, which enables it to work stably under different climatic conditions
Chemical corrosion resistance: Fuel filter paper has excellent chemical stability against various fuels and is not easily corroded, thus extending its service life
Long service life: While maintaining a good filtration effect, the fuel filter paper has a long service life, reducing the frequency of replacement and maintenance costs
High-efficiency filtration: Fuel filter paper can effectively filter out water and gum from the fuel, preventing these substances from entering the cylinder and affecting combustion efficiency
Our fuel filter paper is specially designed for automotive fuel filters, ensuring the supply of pure fuel and achieving the best performance of the engine. The efficient filtering function of this filter paper helps protect the engine and can effectively remove solid particles and moisture, making it a necessary component for equipment used in various environmental conditions.
