OZA14060-Y37-P

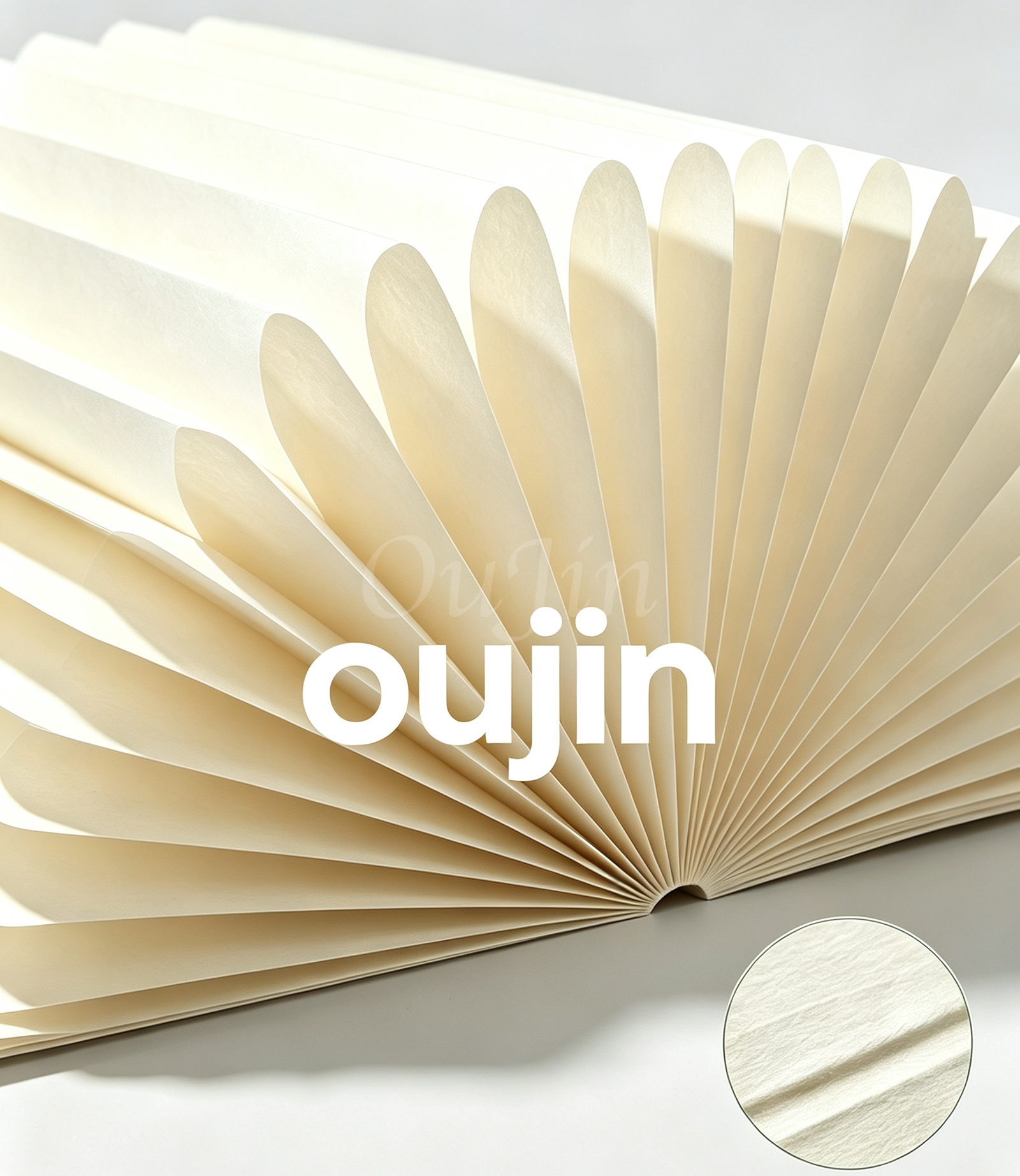

OZA14060-Y37-P non-curing acrylic impregnated filter paper is high-performance air filter substrate treated with non-curing acrylic resin impregnation technology. Grammage 142±5g/m², thickness 0.65±0.05mm. It has excellent MD stiffness and outstanding air permeability with stable and controllable pore size. It keeps stable shape during pleating process, widely used for manufacturing air filters of vehicles and engineering machinery.
Properties | Value |
|---|---|
Grammage | 142±5 g/m² |
Thickness | 0.65±0.05 mm |
Air Permeability | 620±50L/(m²·s @200pa) |
Max pore Size | 105±5 μm |
Pore Size(Average) | 100±5 μm |
Burst Strength | 240±50 kpa |
Stiffness (MD) | 5±1 mN·m |
Corrugation Depth | / |
✅Non-curing acrylic impregnation, stable pleating shape, 142g heavy base paper, outstanding MD stiffness and neat pleats. ✅High airflow design with low air resistance. ✅Uniform pore structure for reliable dust retention. ✅Tough base paper, suitable for pleating & slotting, rolls and sheets in stock. ✅Direct factory supply, mass production, custom specifications and free test samples.
Air filters for passenger cars and heavy-duty trucks
Air filtration system for construction machinery, generator sets and air compressors
Filter media for industrial dust removal and ventilation purification
