OZA13030-BK01-C

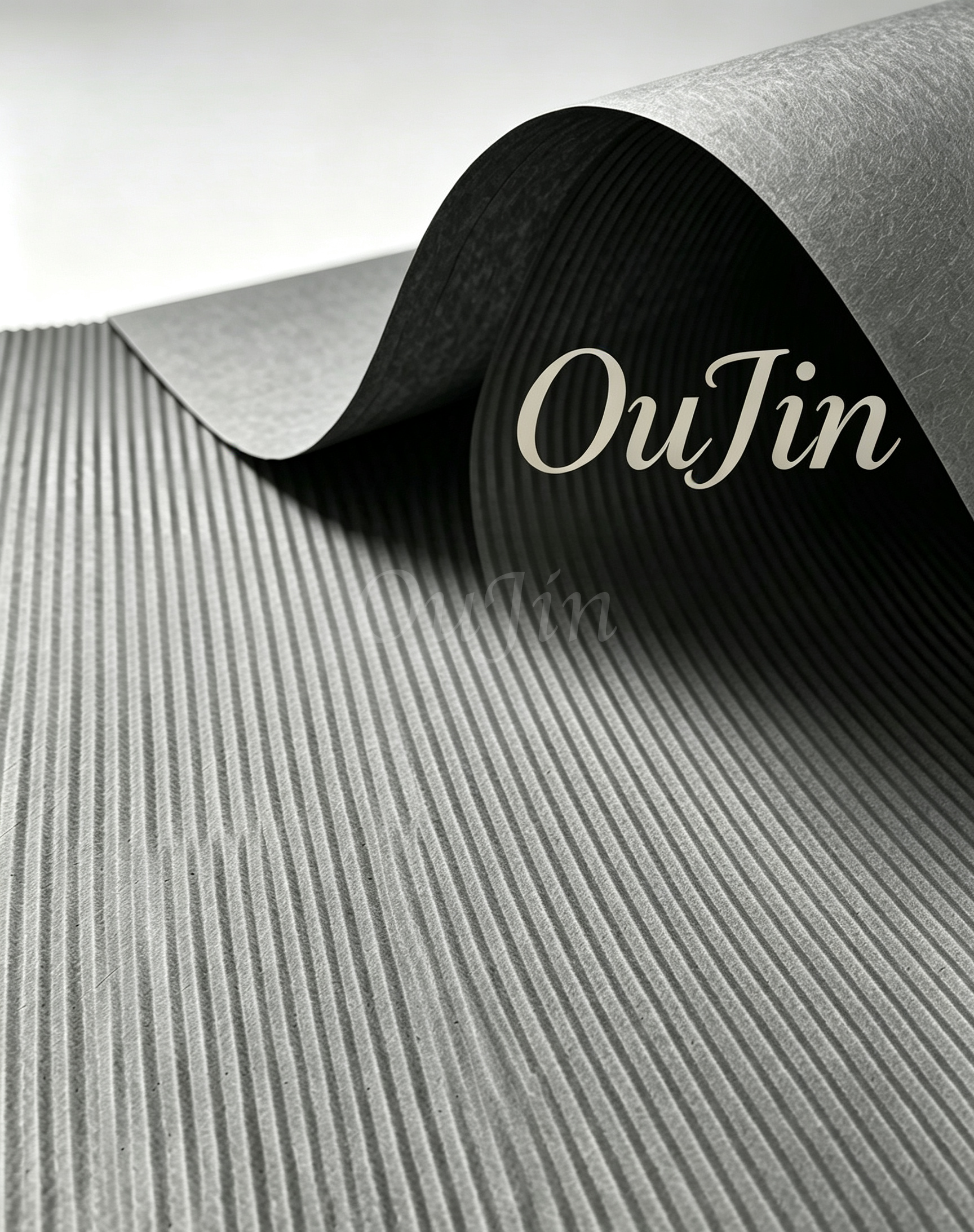

Model OZA13030-BK01-C Acrylic Non-curing Impregnated Filter Paper. Impregnated with acrylic non-curing resin, grammage 130±5g/m², excellent stiffness with 0.25±0.05mm corrugation. It features stable burst strength, moderate air permeability and reliable dust retention performance, widely used for air filter elements.
Property | Value |
|---|---|
Grammage | 130±5 g/㎡ |
Thickness | 0.68±0.03 mm |
Air Permeability | 300 ±50 L/(m²·s @200pa) |
Max. pore Size | 85±5 μm |
Mean Pore Size | 75±5 μm |
Burst Strength | 350±50 kPa |
Stiffness(MD) | 650±50 mN·m |
Corrugation Depth | 0.25±0.05 mm |
✅ Non-curing acrylic impregnation, corrugated structure, high stiffness, no deformation during pleating ✅ Burst strength 350±50kPa, solid structure with good pressure resistance ✅ Stable air permeability and moderate flow resistance to ensure smooth air intake ✅ Uniform pore distribution, effectively trap dust and impurities for stable dust holding capacity ✅ Rolls & sheets available for cutting and pleating air filter elements ✅ Direct factory supply, stable batch quality, custom sizes & free samples
• Automotive passenger car air filters • Light commercial vehicles & construction machinery air filter elements • Intake air filters for generator sets • Industrial air filtration for air compressors, fans
We are Hebei Oujin Nonwoven Technology Co., Ltd, original filter paper manufacturer. Support trial & bulk orders. Roll/sheet cutting available. Free samples for testing.
