OKE11524-B51P

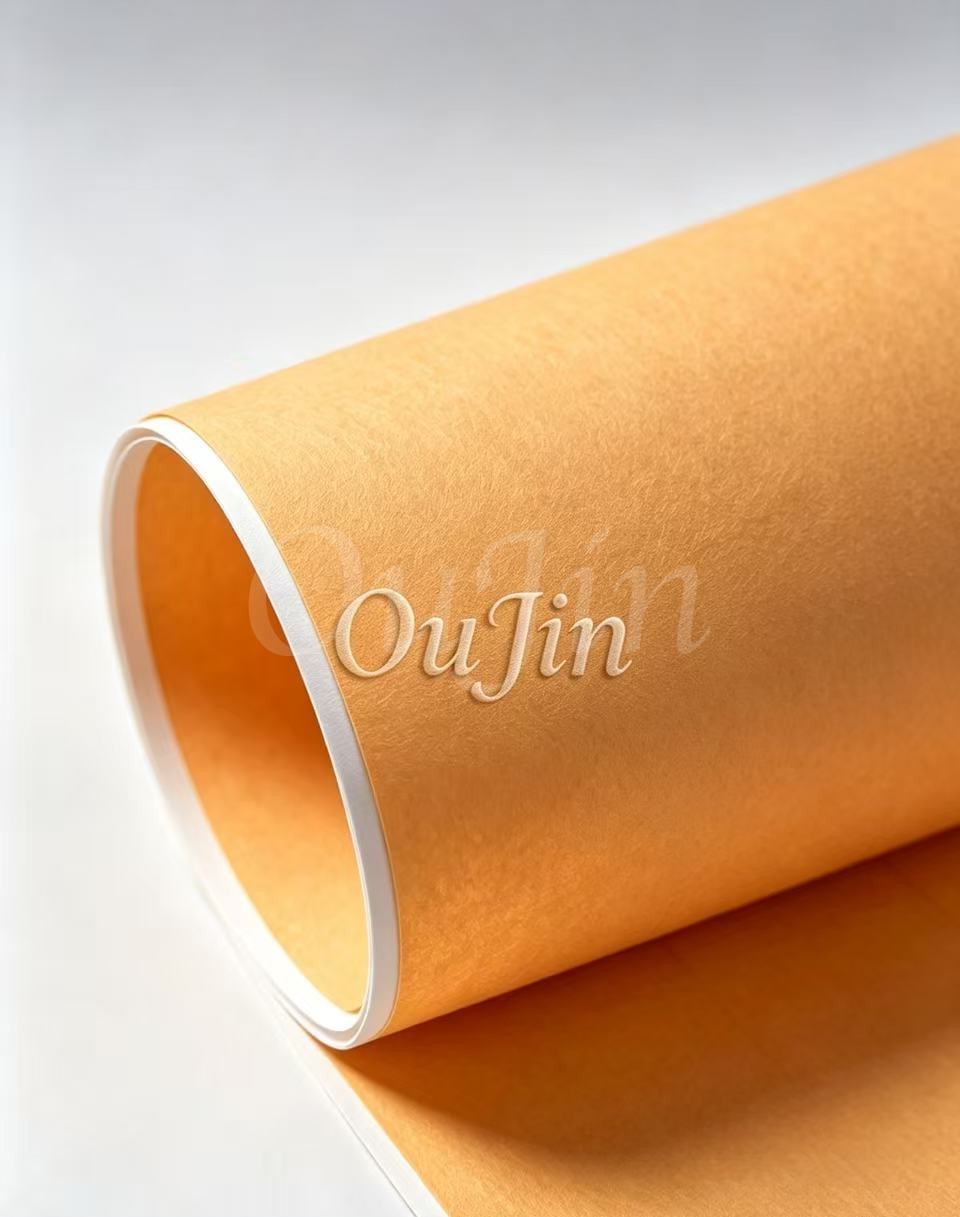

OKE11524-B51P is acrylic non-curing impregnated filter paper, one of the core materials for air filter elements.
It features stable physical properties, good air permeability, reasonable pore size distribution, high burst strength and excellent rigidity, widely used in air filter manufacturing.
Parameter | Specification |
|---|---|
Model | OKE11524-B51P |
Material | Acrylic Non-curing Impregnated Filter Paper |
Grammage (Weight) | 115 ± 5 g/m² |
Thickness | 0.35 ± 0.05 mm |
Air Permeability | 240 ± 30 L/m²·s (ΔP = 200 Pa) |
Max Pore Size | 75 ± 5 μm |
Average Pore Size | 70 ± 5 μm |
Burst Strength | 300 ± 50 kPa |
Stiffness (Longitudinal) | 5.4 ± 0.5 mN·m |
Surface Type | Plain (Flat, Non-corrugated) |
Advantages
✅ Stable performance manufactured in accordance with national industry standards
✅ Customizable color, size and technical parameters to meet your production requirements
✅ Direct factory supply with stable bulk delivery
✅ Samples available for testing
Application
Mainly used for the production of various air filter cartridges and air filters.
Note: Color, size and each specification parameter can be adjusted according to customer requirements
