OKE11025-Y09P

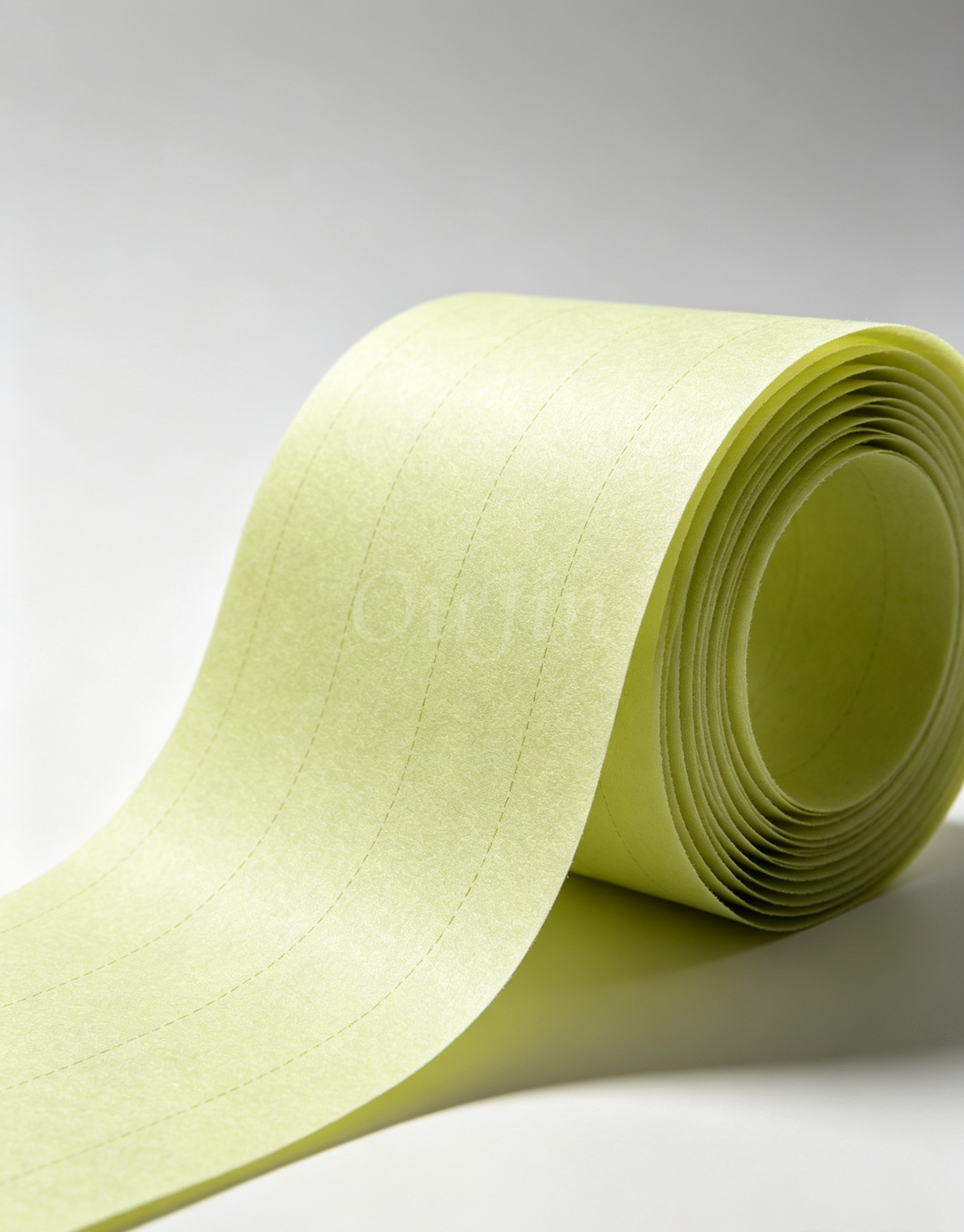

Model OKE11025-Y09P non-cured acrylic impregnated filter paper is plain filter media. Treated with non-cured acrylic resin, grammage 110±5g/㎡, machine direction stiffness 5±1 mN·m. It has stable burst strength, uniform air permeability and reliable dust retention performance, widely used for air filter elements of passenger vehicles.
Property | Value |
|---|---|
Grammage | 110±5 g/m² |
Thickness | 0.35±0.05 mm |
Air Permeability | 250±30 L/(m²·s @200pa) |
Max Pore Size | 75±5 μm |
Mean Pore Size | 70±5 μm |
Burst Strength | 200±50 kPa |
Stiffness (MD) | 5±1 mN·m |
Corrugation | Plain |
Product Advantages
✅ Non-cured impregnation, flexible material, suitable for fine pleating without cracking
✅ Burst strength of 200±50kPa, stable structure and good damage resistance
✅ Balanced air permeability and moderate airflow resistance for smooth engine air intake
✅ Uniform pore size for stable dust holding capacity
✅ Available in rolls and sheets for slitting and pleating
✅ Direct factory supply, consistent batch quality, custom sizes and free samples available
Application
Air filters for passenger cars and light vehicles
Light commercial vehicles and small construction machinery
