OKD14535-W38C

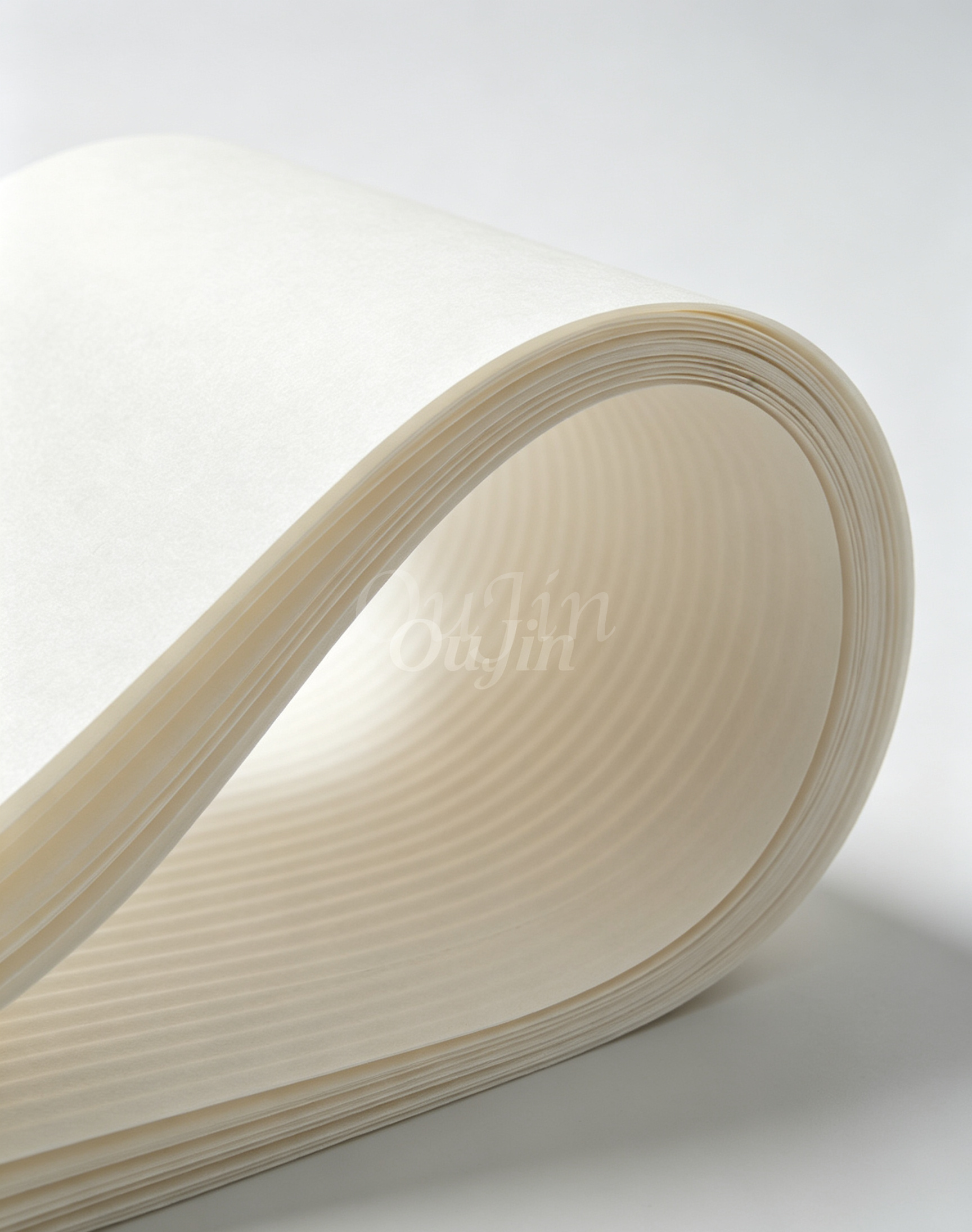

Model OKD14535-W38C non-curing acrylic impregnated filter paper is common filter material. Treated with acrylic resin non-curing process, grammage 145±5g, good MD stiffness, suitable for pleating. It has high burst strength, high airflow and stable dust retention performance. Widely used for air filter elements.
Property | Value |
|---|---|
Grammage | 145±5 g/㎡ |
Thickness | 0.55±0.05 mm |
Air Permeability | 350±30 L/(㎡·s @200pa) |
Max. Pore Size | 70±5 μm |
Mean Pore Size | 65±5 μm |
Burst Strength | 300±50 kPa |
Stiffness (MD) | 6.0±0.5 mN·m |
Corrugation Depth | 0.20±0.05 mm |
✅ Non-curing impregnation, good stiffness, suitable for pleating and not easy to crack ✅ Burst strength 300±50kPa, excellent anti-damage performance ✅ High air permeability, low air intake resistance to ensure smooth engine air intake ✅ Uniform pore size for stable dust holding capacity ✅ Available in rolls and sheets for filter pleating ✅ Direct factory supply, stable batch quality, customized sizes and free samples
• Air filters for passenger cars and light vehicles • Light commercial vehicles and small construction machinery • Air filtration for ventilation and small equipment
We are Hebei Oujin Nonwoven Technology Co., Ltd, original filter paper manufacturer. We support trial orders and bulk purchases. Roll or sheet cutting available. Free samples for testing.
