OKD14030-W41C

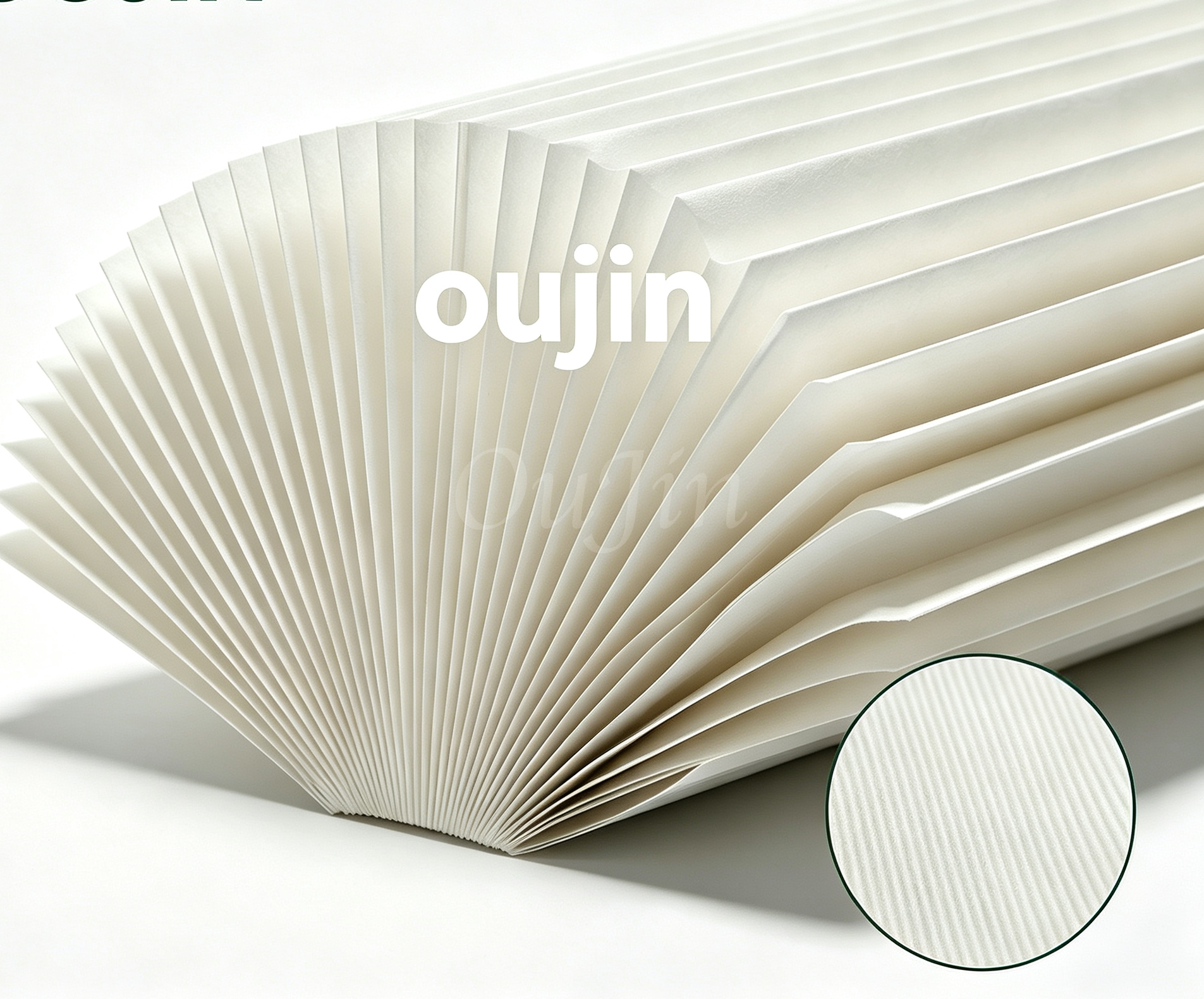

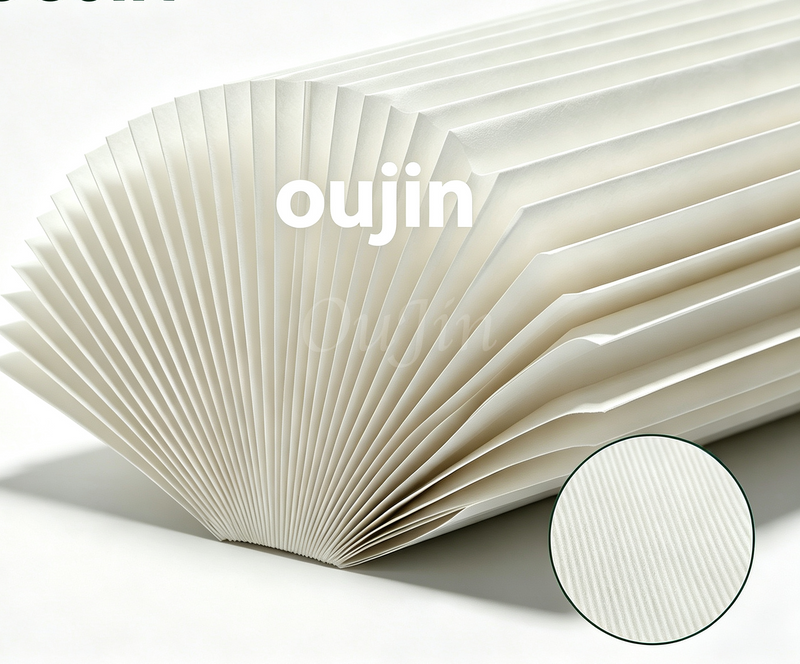

OKD14030-W41C acrylic non-curing impregnated filter paper is professional filter substrate for air filters, treated with non-curing acrylic resin. Grammage 140±5g/m², thickness 0.55±0.05mm, air permeability 300±30L/(m²·s @200pa). It features uniform pore size, burst strength 200±50kPa, MD stiffness 3.7±0.5mN·m and corrugation depth of 0.20±0.05mm. Thin and shallow corrugated design ensures smooth pleating, widely applied for air filters of light vehicles, air compressors and small generator sets.
Properties | Value |
|---|---|
Grammage | 140±5 g/m² |
Thickness | 0.55±0.05 mm |
Air Permeability | 300±30L/(m²·s @200pa) |
Max pore Size | 57±5 μm |
Pore Size(Average) | 55±5 μm |
Burst Strength | 200±50 kPa |
Stiffness (MD) | 3.7±0.5 mN·m |
Corrugation Depth | 0.20±0.05 mm |
✅Non-curing acrylic impregnation, shallow corrugated thin substrate, 140g base paper, smooth pleating without jamming. ✅Stable burst strength, great processing adaptability. ✅Uniform pore structure for consistent dust holding performance. ✅Fit for slotting & pleating, rolls and sheets available. ✅Direct factory supply, mass production, customizable sizes and free test samples.
Air filters for light passenger cars and trucks
Air filtration system for air compressors and small generator sets
Filter media for industrial dust removal and ventilation purification
