OKD13538-Y63P

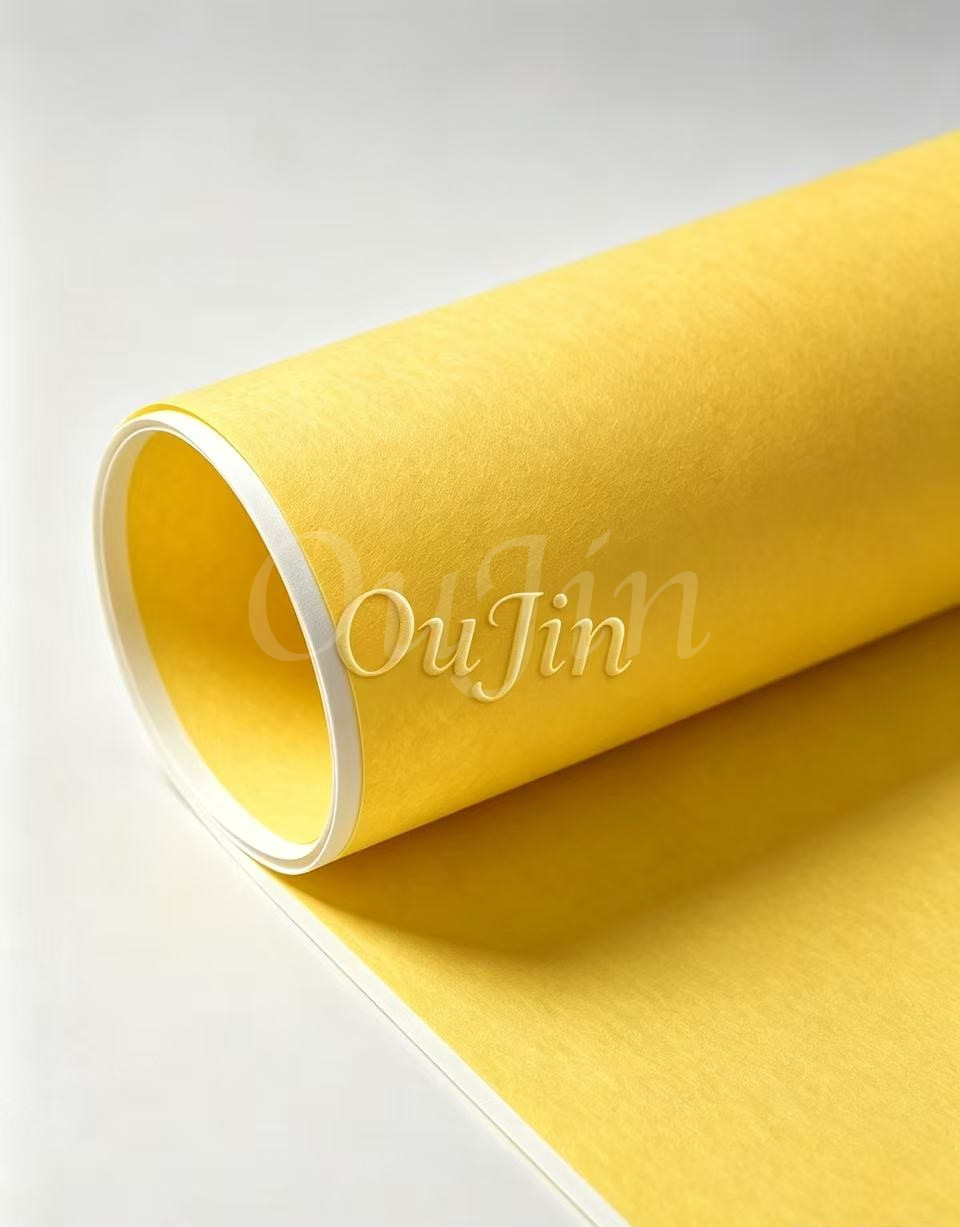

OKD13538-Y63P is acrylic non-curing impregnated filter paper, one of the core materials for air filter elements.
It features stable physical properties, ultra-high air permeability, reasonable pore size distribution, high burst strength and excellent rigidity, widely used in air filter manufacturing.
表格
Parameter Specification
Model OKD13538-Y63P
Material Acrylic Non-curing Impregnated Filter Paper
Grammage 135 ± 5 g/m²
Thickness 0.45 ± 0.05 mm
Air Permeability 380 ± 30 L/m²·s (ΔP = 200 Pa)
Max Pore Size 80 ± 5 μm
Average Pore Size 75 ± 5 μm
Burst Strength 300 ± 50 kPa
Stiffness (Longitudinal) 6 ± 1 mN·m
Surface Type Plain (Flat, Non-corrugated)
Advantages
✅ Stable performance manufactured in accordance with national industry standards
✅ Customizable color, size and technical parameters to meet your production requirements
✅ Direct factory supply with stable bulk delivery
✅ Samples available for testing
Application
Mainly used for the production of various air filter cartridges and air filters.
Note: Color, size and each specification parameter can be adjusted according to customer requirements.
