OKD13030-8206

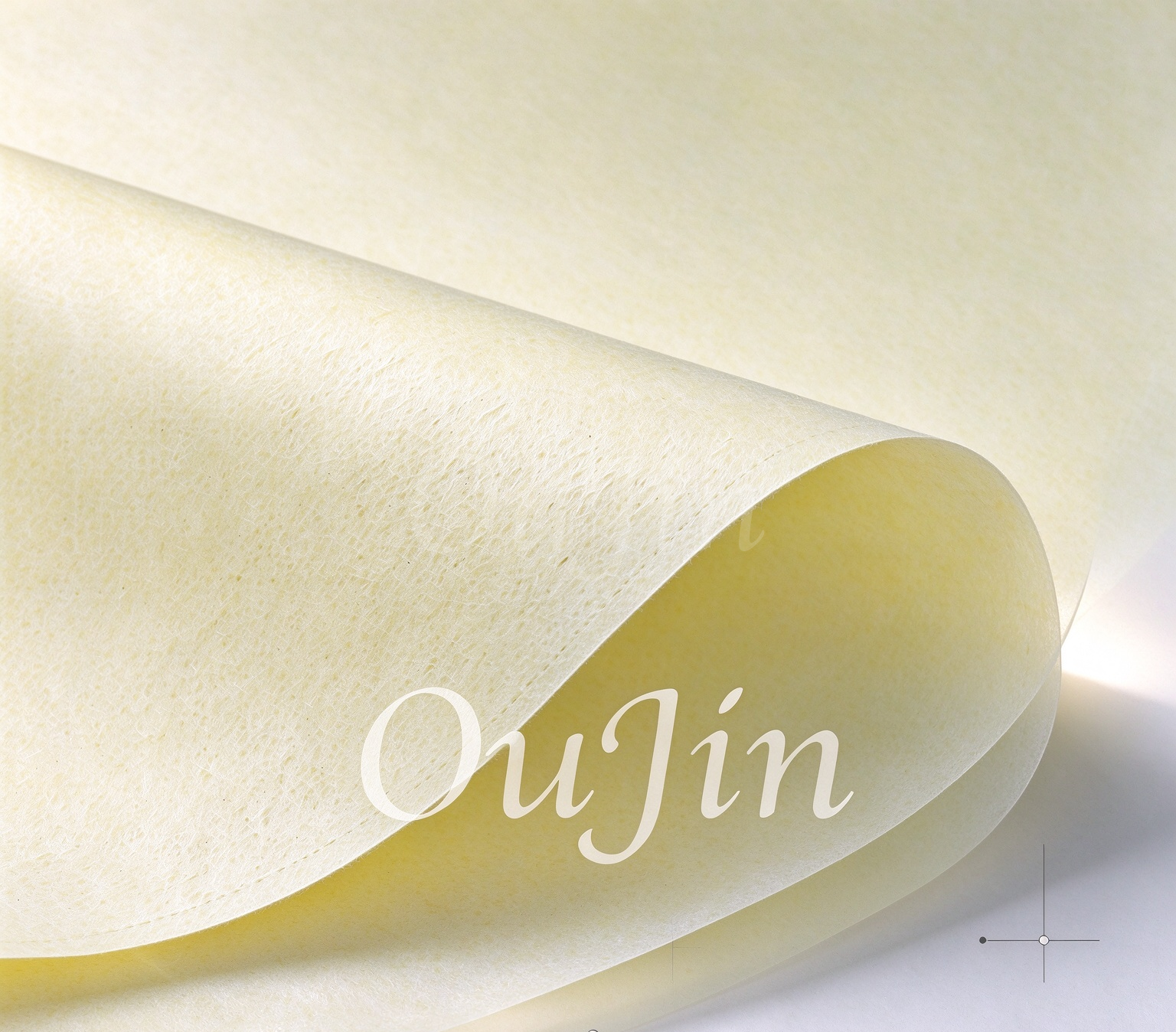

Model OKD13030-8206 Non-curing Acrylic Impregnated Filter Paper is a common filter media. It is treated with non-curing acrylic resin, grammage 130±5g/m², good stiffness, suitable for soft pleats. It features high burst strength, high air flow and stable dust holding capacity. Widely used for automotive air filter elements.
Item | Parameter | Test Standard |
|---|---|---|
Model | OKD13030-8206 | Product Standard |
Resin System | Acrylic non-curing impregnated filter paper | - |
Application | Air filter | - |
Grammage | 130±5 g/m² | GB/T451.2-2023 |
Air Permeability | 300±30 L/m² (△=200Pa) | GB/T 458-2008 |
Corrugation Depth | / | GB/T451.3-2002 |
Thickness | 0.45±0.05 mm | GB/T451.3-2002 |
Burst Strength | 300±50 kPa | GB/T454-2020 |
Machine Direction Stiffness | 6±1 mn•m | GB/T 23144-2023 |
Max. Pore Size | 80±5 μm | GB/T 2679.14-1996 |
Average Pore Size | 75±5 μm | GB/T 2679.14-1996 |
✅Non-curing impregnation, high stiffness, suitable for fine pleats without cracking ✅High burst strength 300±50kPa, excellent damage resistance ✅High air permeability, low air intake resistance for smooth engine air intake ✅Uniform pore size to ensure stable dust retention ✅Available in flat sheet, rolls and panels for slitting and pleating ✅Direct supply from factory, stable batch quality, custom sizes & free samples
Air filters for passenger cars and light vehicles
Light commercial vehicles and small construction machinery
Ventilation and air filtration for small equipment
We are Hebei Oujin Nonwoven Technology Co., Ltd, an original filter paper manufacturer. Support trial orders and bulk purchase. Slitting & sheet processing available. Free samples for testing.
