OKD09580-G71-P

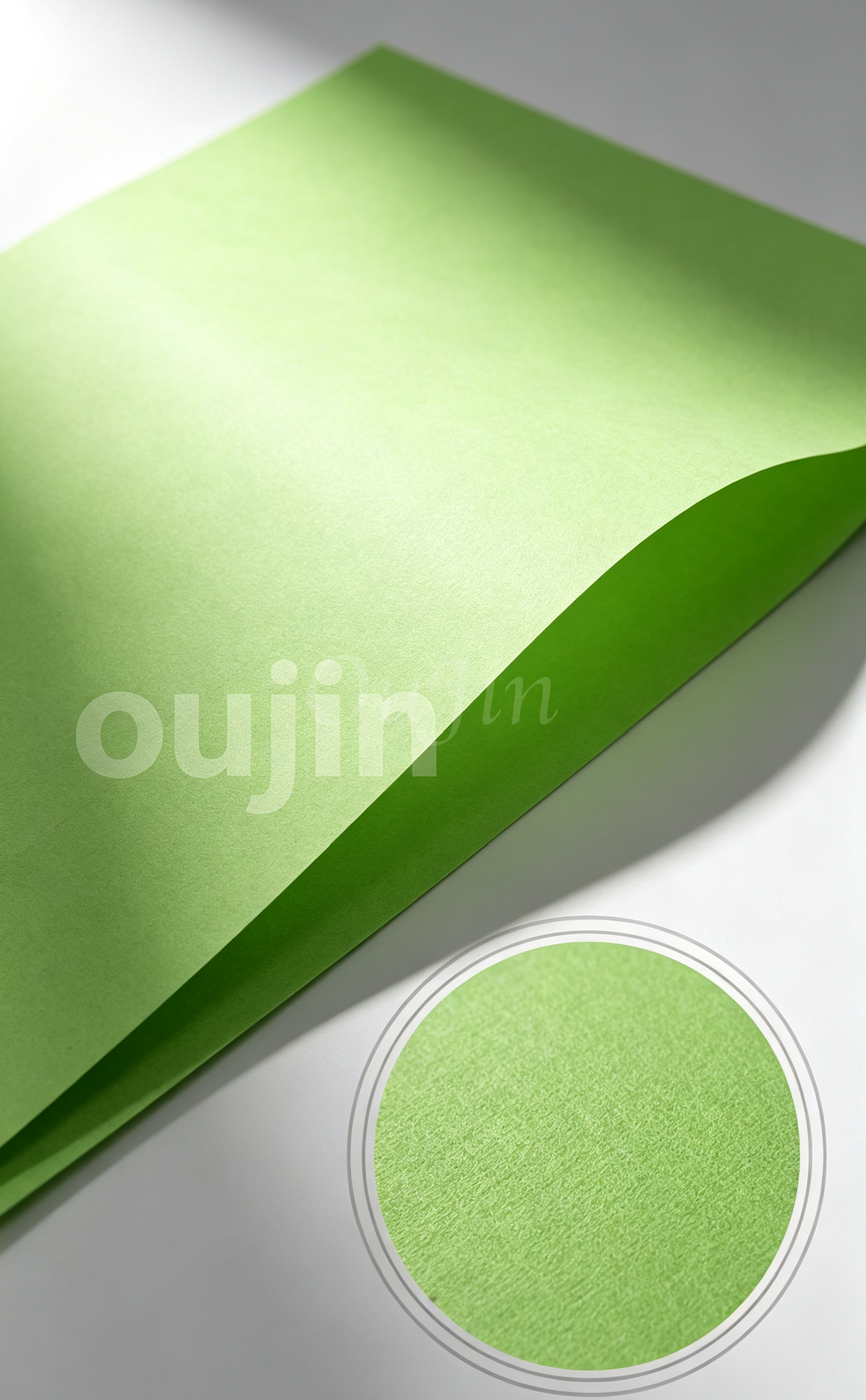

Model OKD09580-G71-P non-curing acrylic impregnated filter paper is flat air filter substrate. Treated by non-curing acrylic resin impregnation, it is flat and soft, suitable for pleating processing. The filter paper has high burst strength, ultra-high air permeability and uniform pore size distribution for stable dust retention. It is widely used for manufacturing engine air filter elements.
Properties | Value |
|---|---|
Grammage | 100±5 g/㎡ |
Thickness | 0.55±0.05 mm |
Air Permeability | 1600±30L/(m²·s @200pa) |
Max. Pore Size | 95±5μm |
Average Pore Size | 90±5μm |
Burst Strength | 380±50kPa |
Stiffness(MD) | 2±1mN·m |
Corrugation Depth | / |
✅ Non-curing impregnation technology, flat soft base material, smooth pleating & anti-cracking ✅ Burst strength up to 380±50kPa, great impact and damage resistance ✅ Ultra-high air permeability, large airflow volume, reduce intake resistance to ensure sufficient engine air supply ✅ Uniform and controllable pore size for stable dust capture and retention ✅ Rolls and sheets available for slitting deep processing ✅ Direct supply from manufacturer, stable batch quality, custom specifications & free samples
• Air filters for passenger cars and light-duty vehicles • Air filtration for light commercial vehicles & small construction machinery • Air purification for ventilation systems and large fans
We are Hebei Oujin Nonwoven Technology Co., Ltd, professional filter paper manufacturer. Trial orders and bulk orders are acceptable. Rolls and sheets can be supplied. Free samples can be sent for performance testing.
