OKC13540-Y103W

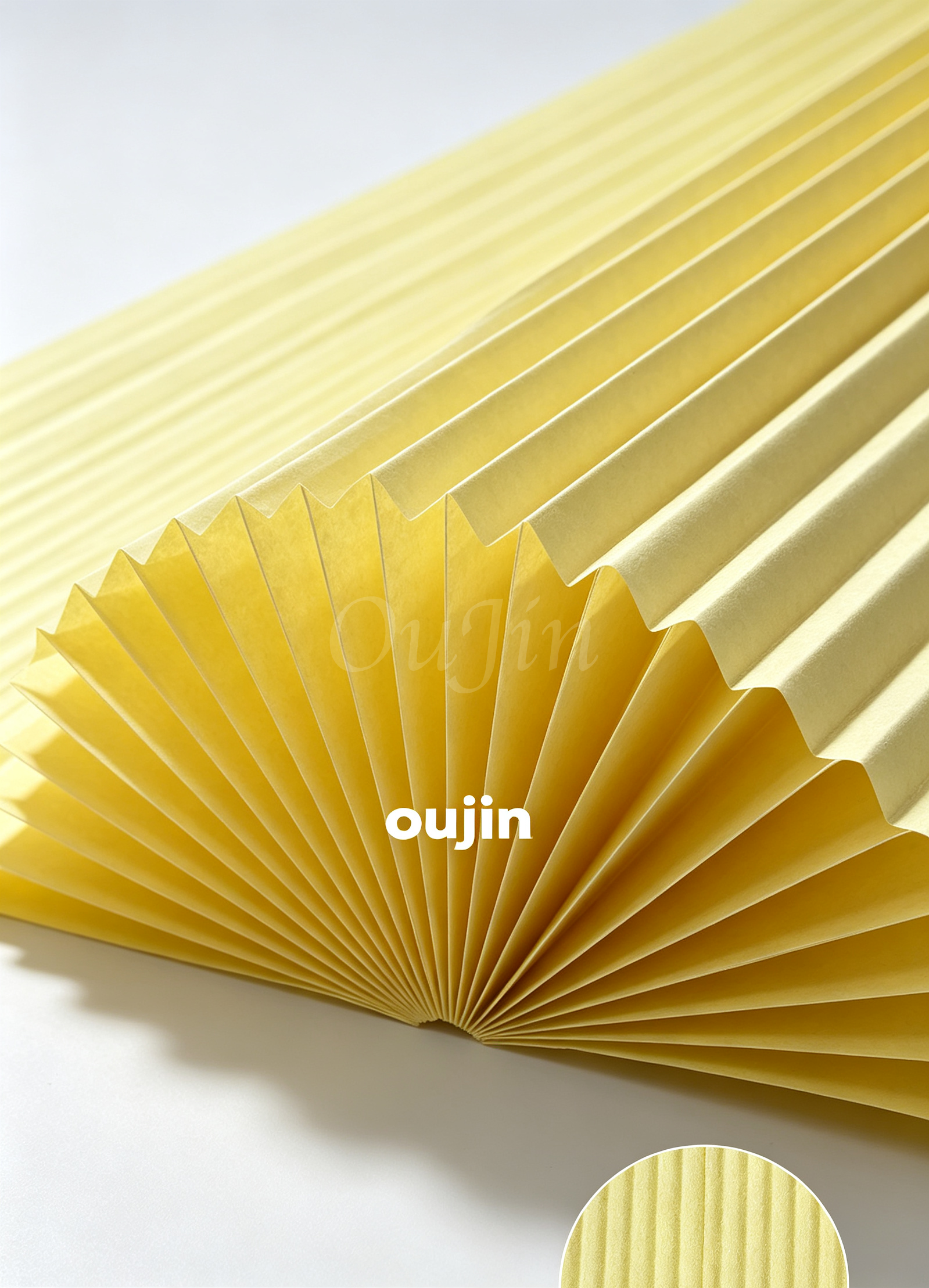

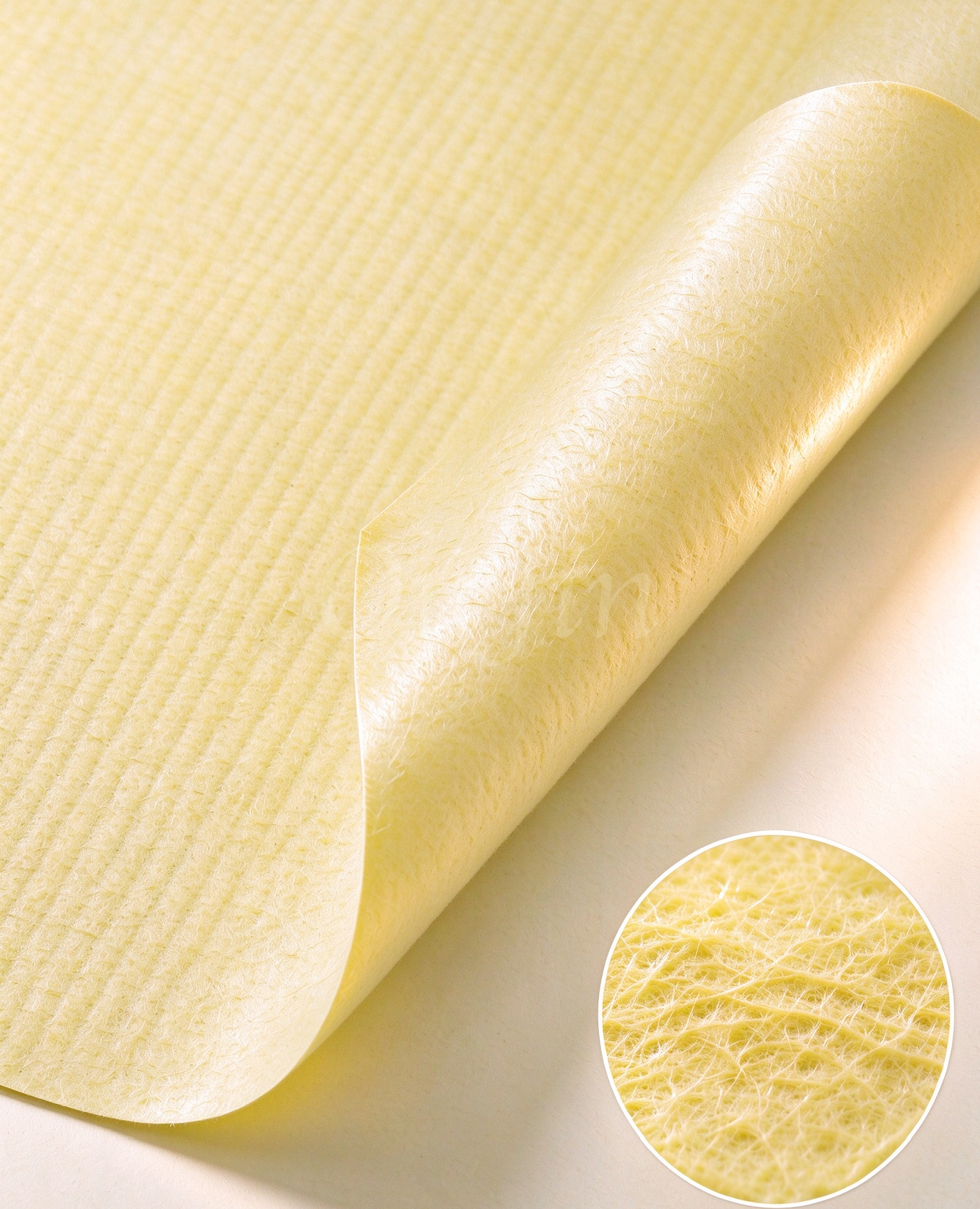

OKC13540-Y103W acrylic non-curing impregnated filter paper is professional filter substrate for air filters, treated with non-curing acrylic resin. Grammage 135±5g/m², thickness 0.70±0.05mm, air permeability 350±50L/(m²·s @200pa). It has uniform pore size, burst strength 350±50kPa, excellent MD stiffness of 11±0.5mN·m and corrugation depth of 0.30±0.05mm. It maintains good integrity while pleating, widely used for air filters of vehicles, construction machinery and generator sets.
Properties | Value |
|---|---|
Grammage | 135±5 g/m² |
Thickness | 0.70±0.05 mm |
Air Permeability | 350±50L/(m²·s @200pa) |
Max pore Size | 70±5 μm |
Pore Size(Average) | 65±5 μm |
Burst Strength | 350±50 kPa |
Stiffness (MD) | 11±0.5 mN·m |
Corrugation Depth | 0.30±0.05 mm |
✅Non-curing acrylic impregnation, built-in corrugated structure,135g base paper, superior MD stiffness, anti-breaking during pleating. ✅High burst strength, stable pressure resistance. ✅Uniform pore structure, reliable dust holding capacity. ✅Fit for slotting & pleating, rolls and sheets in stock. ✅Direct factory supply, mass production, customizable sizes and free test samples.
Air filters for passenger cars and trucks
Air filtration system for construction machinery, generator sets and air compressors
Filter media for industrial dust removal and ventilation purification
