OKA17016-W03-C

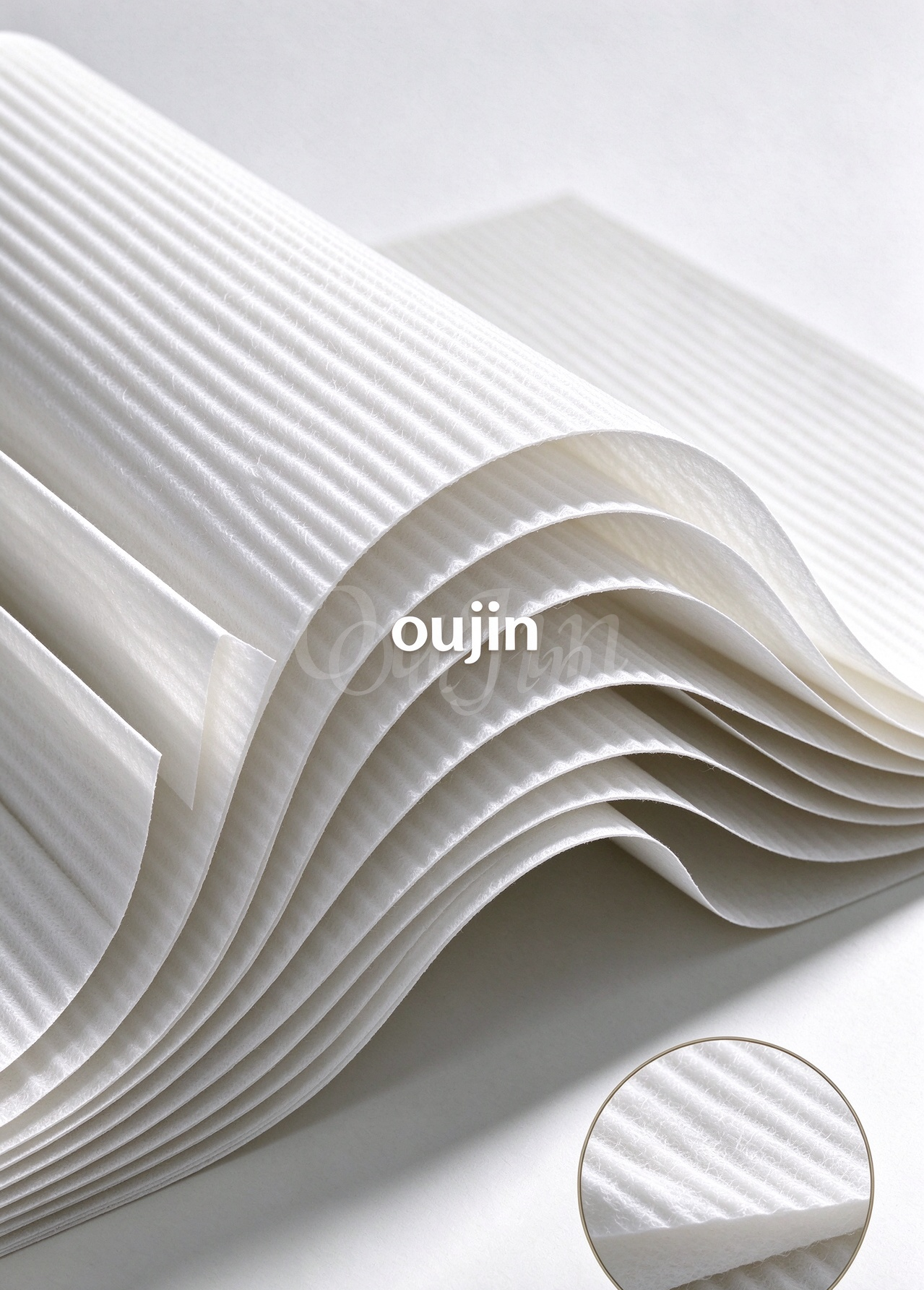

OKA17016-W03-C acrylic non-curing impregnated filter paper is professional filter substrate for air filters, treated with non-curing acrylic resin. Grammage 170±10g/m², thickness 0.75±0.05mm, air permeability 160±40L/(m²·s @200pa). It features uniform pore size, burst strength 450±50kPa, MD stiffness 11±0.5mN·m and corrugation depth of 0.30±0.05mm. Medium-deep corrugated design brings excellent stiffness and stable pleating performance, widely applied for air filters of construction machinery and generator sets.
Properties | Value |
|---|---|
Grammage | 170±10 g/m² |
Thickness | 0.75±0.05 mm |
Air Permeability | 160±40L/(m²·s @200pa) |
Max pore Size | 51±5 μm |
Pore Size(Average) | 47±5 μm |
Burst Strength | 450±50 kPa |
Stiffness (MD) | 11±0.5 mN·m |
Corrugation Depth | 0.30±0.05 mm |
✅Non-curing acrylic impregnation,170g thick base paper with 0.3mm medium-deep corrugation, outstanding MD stiffness, stable pleating without collapse. ✅High burst strength, strong tear resistance during processing. ✅Fine & uniform pore structure, good dust capture and large dust holding capacity. ✅Compatible with slotting and pleating, rolls and sheets available. ✅Direct factory supply, mass production, customizable sizes and free test samples.
Air filters for construction machinery and heavy-duty vehicles
Air filtration system for generator sets and large air compressors
Filter media for industrial dust removal and large ventilation purification
