OKA13530-W10-P

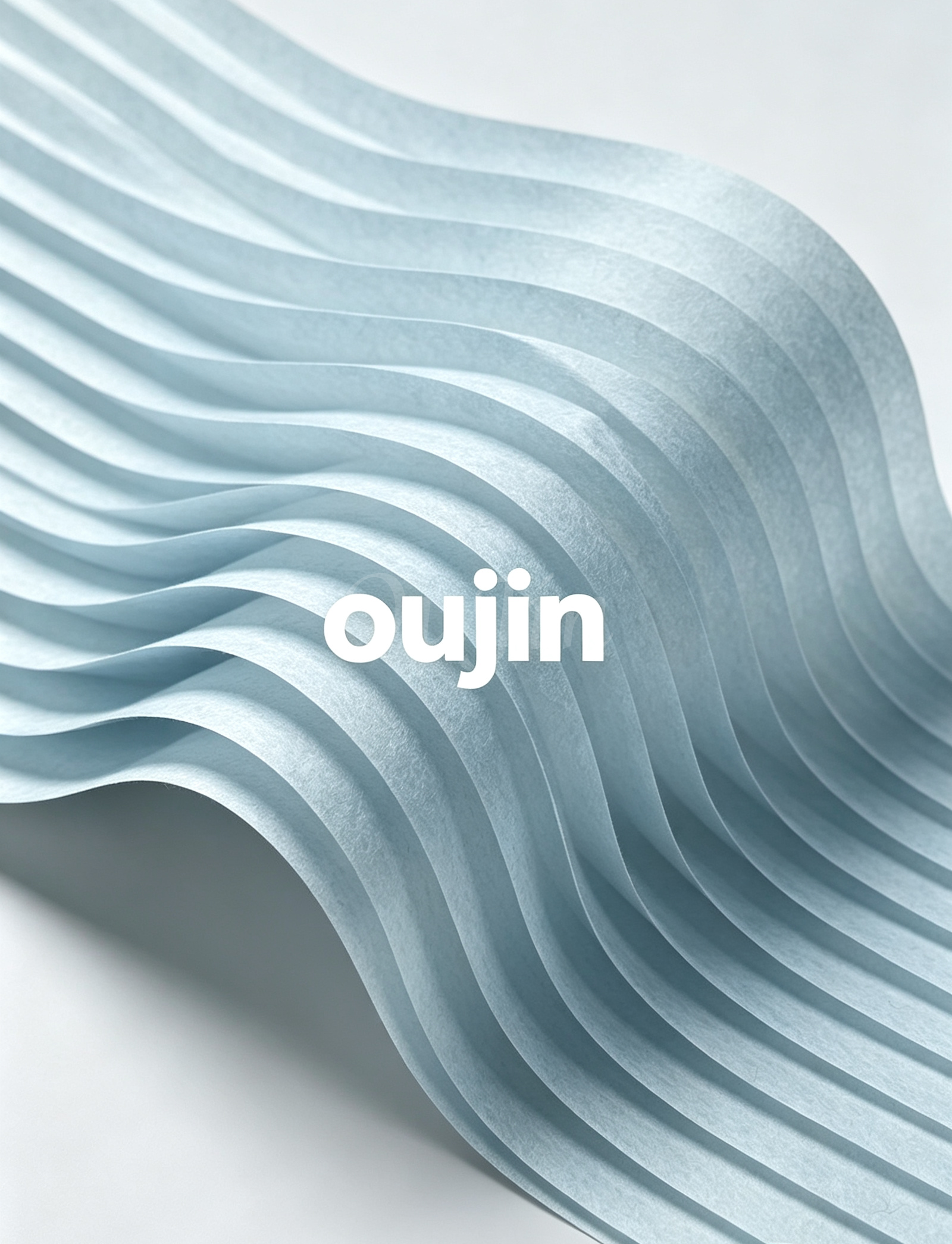

OKA13530-W10-P non-curing acrylic impregnated filter paper is common filter material. It adopts non-curing process for acrylic resin. Grammage is 125±5g, with excellent rigidity, high burst strength and stable pore size. It performs well in air permeability. It is not easy to crack during pleating processing, which is an ideal raw material for air filters of automobiles and construction machinery.
Property | Value |
|---|---|
Grammage | 125±5 g/m² |
Thickness | 0.47±0.05 mm |
Air Permeability | 300±30 L/(m²·s@200pa) |
Max. pore Size | 80±5 μm |
Pore Size | 75±5 μm |
Burst Strength | 500±50 kPa |
Stiffness (MD) | 3±1 mN·m |
Corrugation | — |
Product Advantages ✅Non-curing acrylic impregnation, crack-resistant during pleating, fine workmanship, 125g, good MD stiffness, perfect pleat formation ✅High burst resistance 500±50kPa, anti-break under working pressure ✅Uniform pore size, good dust holding capacity, stable air permeability and airflow barrier ✅Smooth base paper, easy for grooving and pleating, available in rolls and sheets ✅Direct factory supply, stable mass production, customized sizes & free samples
Application
Air filters for passenger cars and trucks
Air filtration systems for construction machinery, generator sets and air compressors
Industrial dust removal and ventilation air filtration
