OKA08530-W12-P

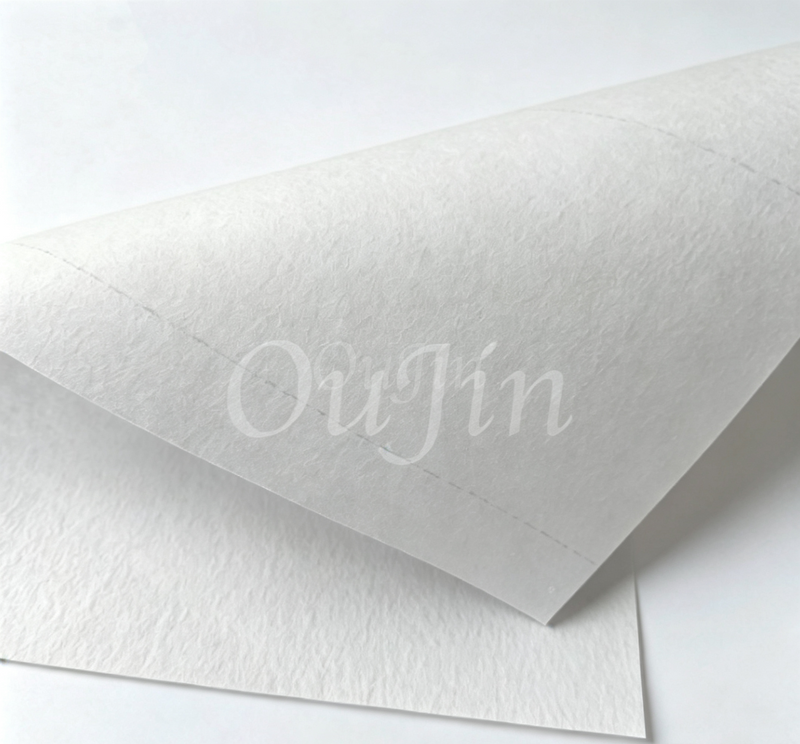

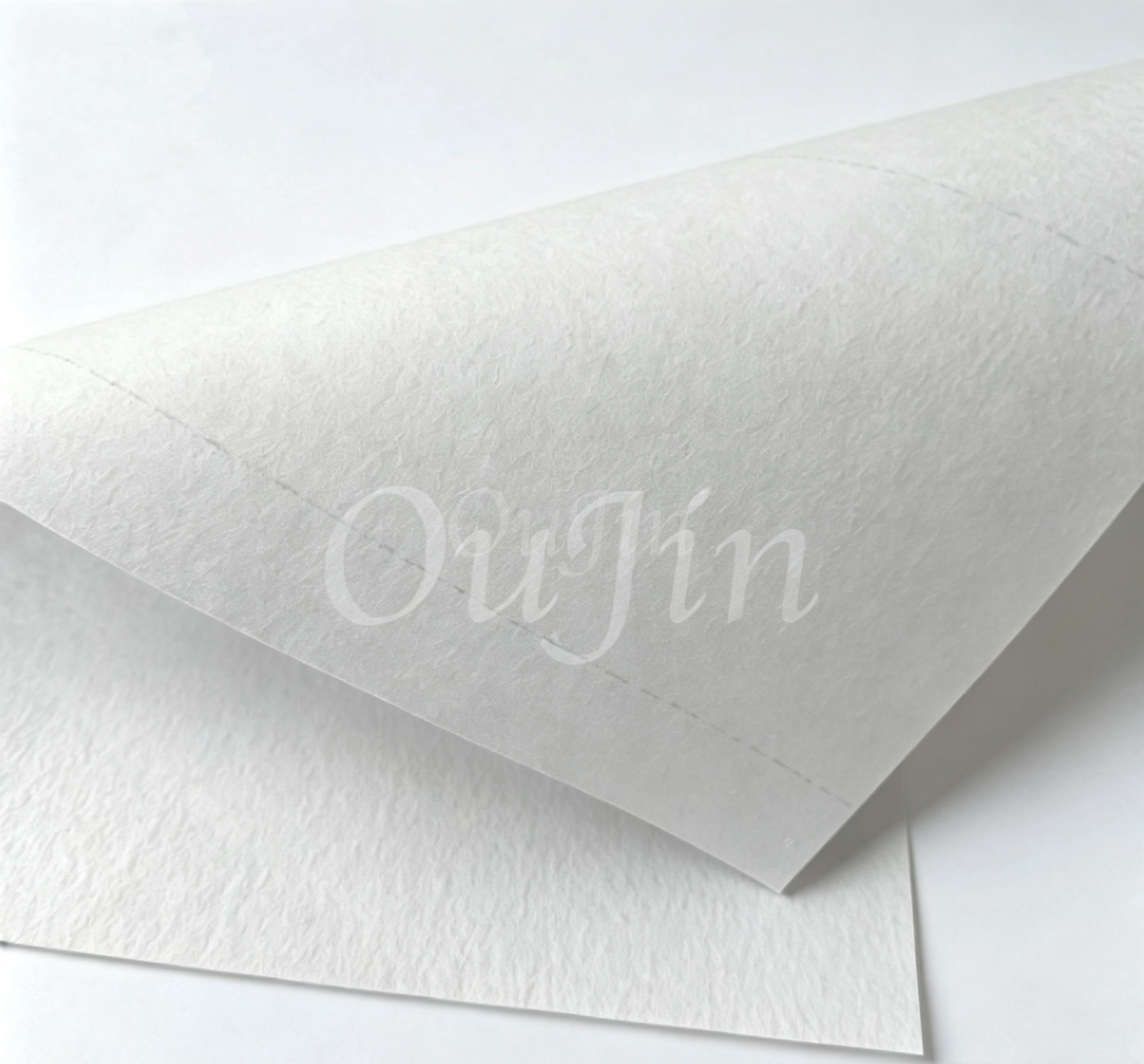

Model OKA08530-W12-P non-curing acrylic impregnated filter paper is a common filter material. Treated with non-curing acrylic resin, it has grammage of 85±5 g/㎡ and moderate stiffness, suitable for soft pleats. It features ultra-high burst strength, high airflow and stable dust holding performance. Widely used for passenger car air filter elements.
Property | Value |
|---|---|
Grammage | 85±5 g/㎡ |
Thickness | 0.47±0.05 mm |
Air Permeability | 300±30 L/(m²·s @200pa) |
Max. Pore Size | 80±5 μm |
Average Pore Size | 75±5 μm |
Burst Strength | 500±50 kPa |
Stiffness (MD) | 3±1 mN·m |
Corrugation | Plain |
✅ Non-curing impregnation, flexible material, suitable for fine pleating and crack resistance ✅ Ultra-high burst strength of 500±50kPa with excellent damage resistance ✅ High air permeability and low air intake resistance to ensure smooth engine air intake ✅ Uniform pore size for stable dust capture and consistent filtration performance ✅ Plain base material, rolls and sheets available for slitting and pleating processing ✅ Direct factory supply with stable batch quality, customized sizes and free test samples
Air filters for passenger cars and light vehicles
Light commercial vehicles and small construction machinery
Air filtration for ventilation and small equipment
We are Hebei Oujin Nonwoven Technology Co., Ltd, original filter paper manufacturer. Trial orders and bulk orders are supported. Roll and sheet cutting available. Free samples for testing.
Note: Color, size and all specification parameters can be changed as per customer's requirements
