OJWK-12018/9023

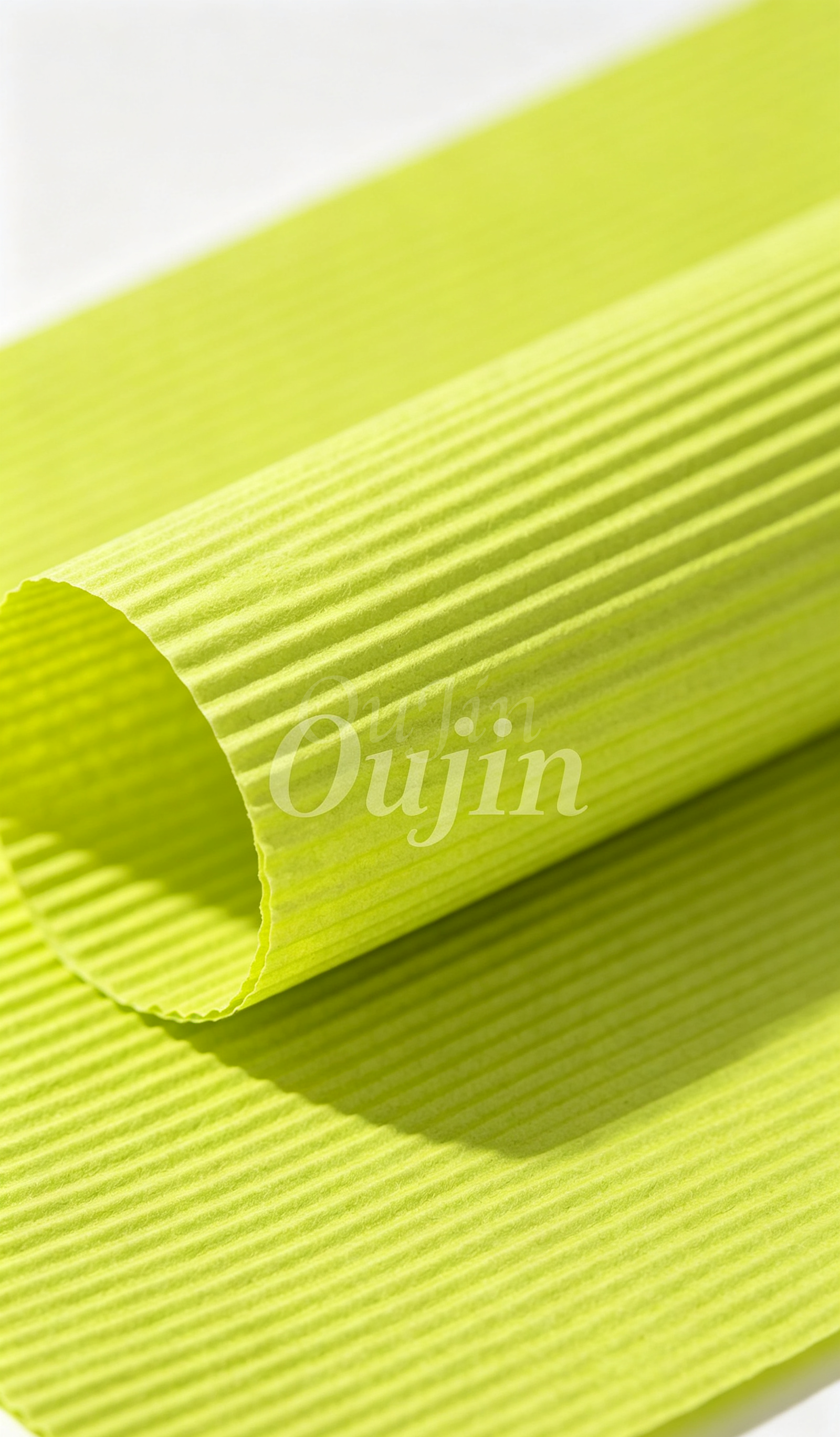

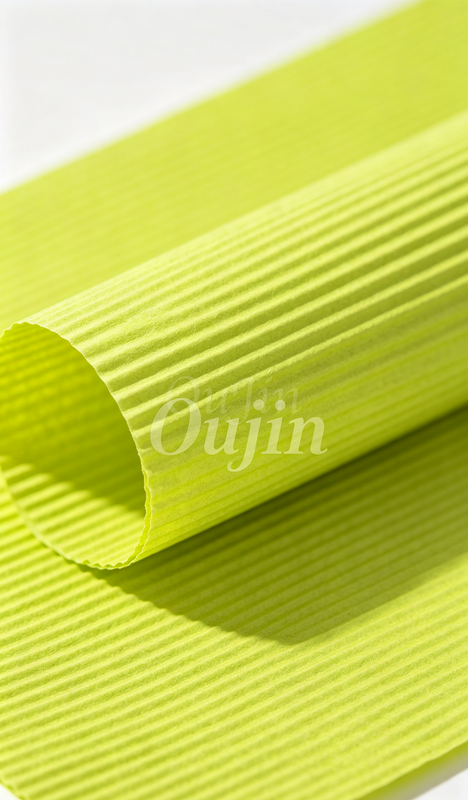

Model OJWK-12018/9023 non-curing acrylic impregnated filter paper is common filter material. Treated with non-curing acrylic resin, grammage 120±5g, high stiffness, suitable for soft pleating. It has high burst strength, high air flow and stable dust holding performance. Widely used in passenger car air filter elements.
Property | Value |
|---|---|
Grammage | 120±5 g/㎡ |
Thickness | 0.68±0.05 mm |
Air Permeability | 180±30 L/(m²·s @200pa) |
Max Pore Size | 48±5 μm |
Mean Pore Size | 45±5 μm |
Burst Strength | 300±50 kPa |
Stiffness MD | 9.5±0.5 mN·m |
Corrugation Depth | 0.45±0.05 mm |
✅Non-curing impregnation, high stiffness, suitable for soft pleating without cracking ✅High burst strength 300±50kPa, excellent damage resistance ✅Stable air permeability with proper air inlet resistance for smooth engine air intake ✅Uniform pore size for stable dust retention ✅Corrugated rolls and sheets available for slitting and pleating ✅Direct factory supply, stable batch quality, custom sizes & free samples
Air filters for passenger cars and light vehicles
Light commercial vehicles and small construction machinery
Air filtration for ventilation and small equipment
We are Hebei Oujin Nonwoven Technology Co., Ltd, original filter paper manufacturer. Support trial orders and bulk purchase. Rolls/sheets cutting available. Free samples for testing.
