OJWK-11550/8020(F9)

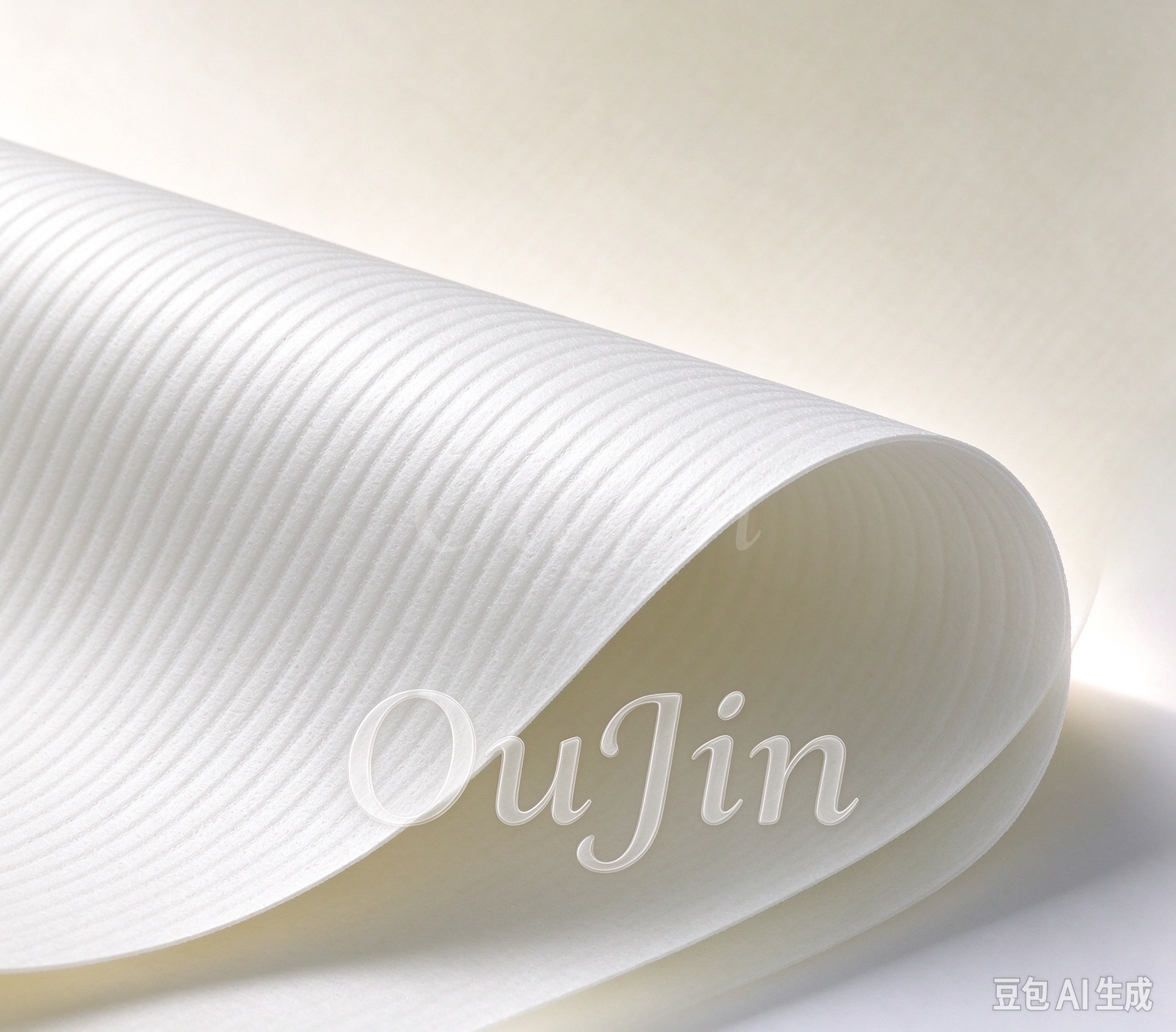

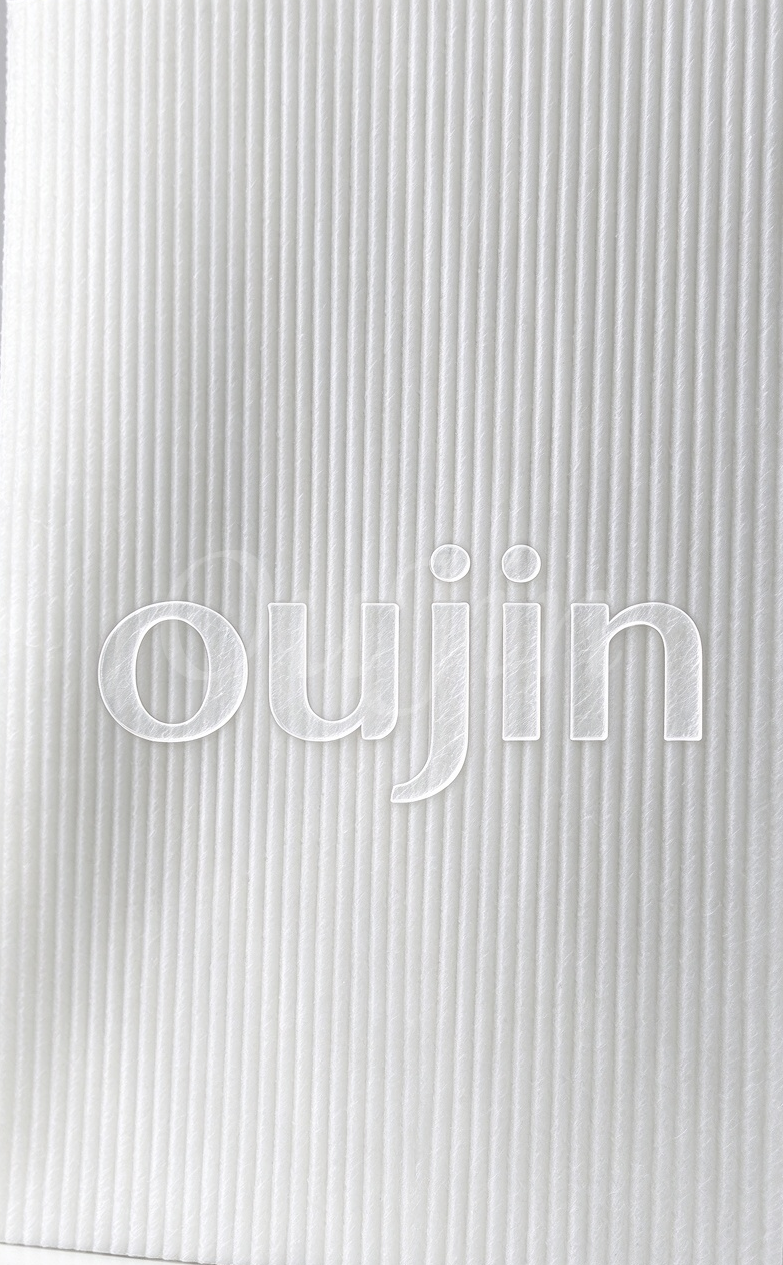

Model OJWK-11550/8020(F9) acrylic non-curing impregnated filter paper is a common filter material. Treated with non-curing acrylic resin, with grammage of 115±5g/m², good rigidity and suitable for soft pleats. It features excellent burst resistance, stable air permeability and reliable dust holding capacity. Widely used for automotive air filter elements.
Item | Parameter | Test Standard |
|---|---|---|
Model | OJWK-11550/8020(F9) | Product Standard |
Resin System | Acrylic non-curing impregnated filter paper | - |
Application | Air filter | - |
Grammage | 115±5 g/m² | GB/T451.2-2023 |
Air Permeability | 160±30 L/m²(△=200Pa) | GB/T 458-2008 |
Thickness | 0.50±0.03 mm | GB/T451.3-2002 |
Burst Strength | 200±50 kPa | GB/T454-2020 |
Longitudinal Stiffness | 2±1 mN·m | GB/T 23144-2023 |
Max. Pore Size | 40±5 μm | GB/T 2679.14-1996 |
Average Pore Size | 35±5 μm | GB/T 2679.14-1996 |
Corrugation Depth | 0.2±0.05mm | GB/T451.3-2002 |
✅Non-curing impregnation, high stiffness, suitable for soft pleats without cracking ✅Burst strength 200±50kPa, good damage resistance, stable air permeability and low air intake resistance to ensure smooth engine air intake. Uniform pore size for stable dust holding. Available in sheets and rolls for pleating processing. Factory direct supply, stable batch quality, custom sizes and free samples.
Air filters for passenger cars and light vehicles
Light commercial vehicles and small construction machinery
Ventilation and air filtration of small equipment
We are Hebei Oujin Nonwoven Technology Co., Ltd., an original filter paper manufacturer. Trial orders and bulk purchasing are supported. Slitting and sheet cutting available. Free samples for testing.
