OJWK-11519/9014

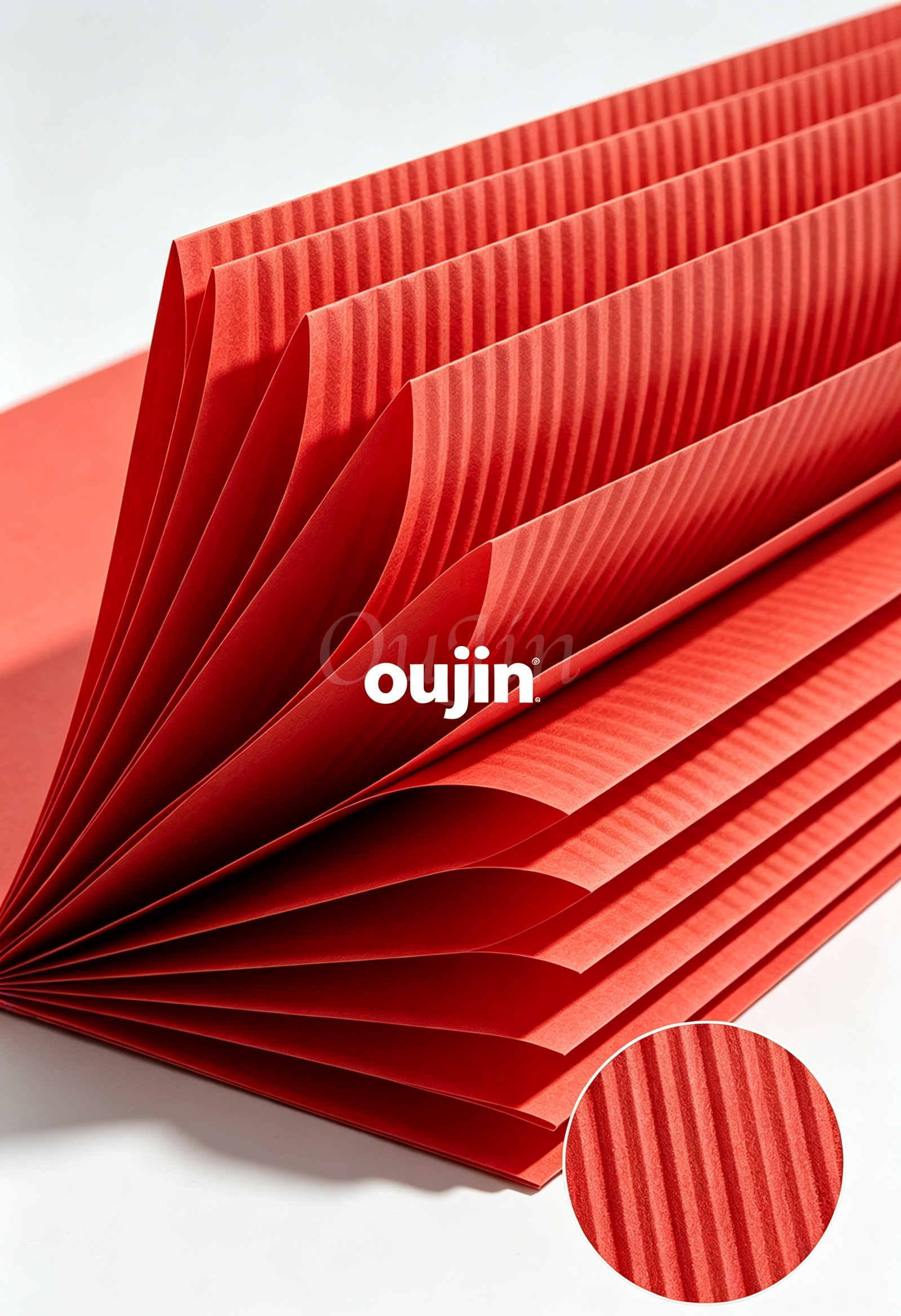

OJWK-11519/9014 acrylic non-curing impregnated filter paper is professional substrate for air filters, treated with non-curing acrylic resin. Grammage 115±5g/m², thickness 0.78±0.05mm, air permeability 190±20L/(m²·s @200pa). It has uniform pore size and excellent burst strength, with corrugation depth of 0.45±0.05mm. It won’t crack easily during pleating process, widely applied for air filters of vehicles and engineering machinery.
Properties | Value |
|---|---|
Grammage | 115±5 g/m² |
Thickness | 0.78±0.05 mm |
Air Permeability | 190±20L/(m²·s @200pa) |
Max pore Size | 40±5 μm |
Pore Size(Average) | 37±5 μm |
Burst Strength | 350±50 kPa |
Stiffness (MD) | 6.5±0.5 mN·m |
Corrugation Depth | 0.45±0.05 mm |
✅Non-curing acrylic impregnation, built-in corrugated structure,115g base paper, strong MD stiffness, anti-cracking during pleating. ✅High burst strength, stable performance under pressure. ✅Uniform pore structure for consistent dust holding. ✅Suitable for slotting & pleating, rolls and sheets available. ✅Direct factory supply, mass production, custom specifications and free test samples.
Air filters for passenger cars and trucks
Air filtration system for construction machinery, generator sets and air compressors
Filter media for industrial dust removal and ventilation purification
