OJWK-11519/8001

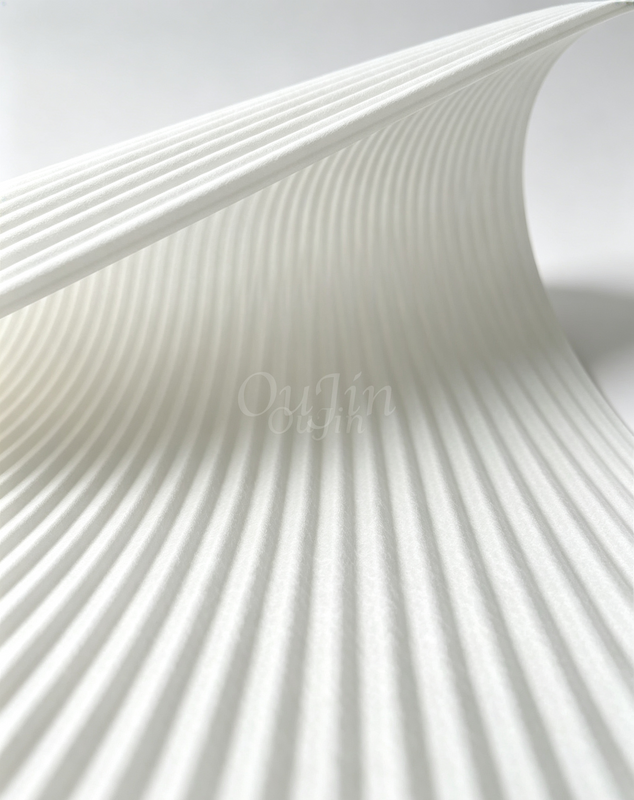

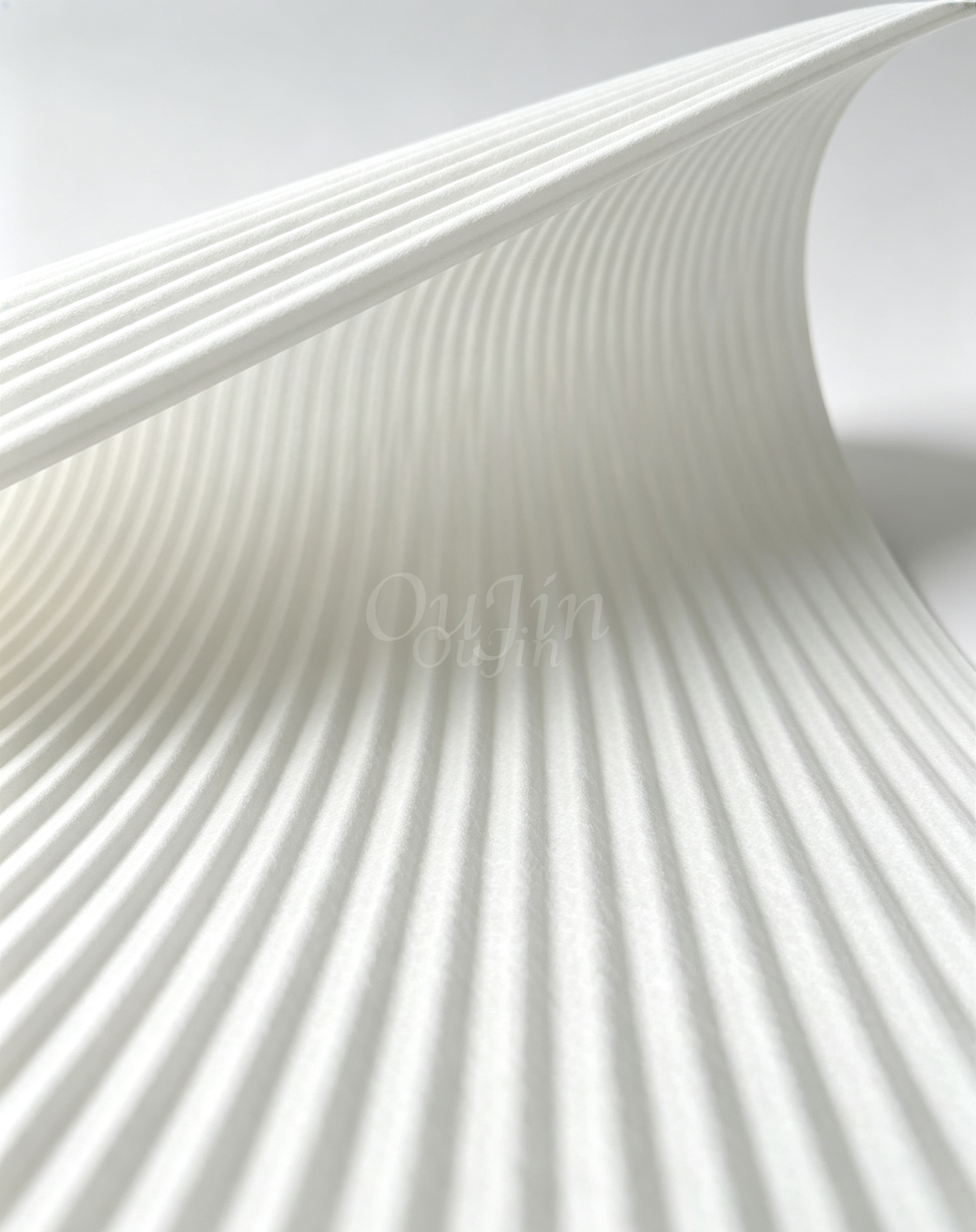

Model OJWK-11519/8001 non-curing acrylic impregnated filter paper is a common filter media. Treated with non-curing acrylic resin, grammage 115±5 g/m², high stiffness, suitable for corrugation. It features high burst strength, stable air flow and reliable dust retention performance. Widely used for automotive air filter elements.
Properties | Value |
|---|---|
Grammage | 115±5 g/m² |
Thickness | 0.60±0.05 mm |
Air Permeability | 190±30 L/(m²·s @200pa) |
Max.pore Size | 42±5 μm |
Pore Size | 40±5 μm |
Burst Strength | 330±50 kPa |
Stiffness (MD) | 6.5±0.5 mN·m |
Corrugation Depth | 0.45±0.05 mm |
✅ Non-curing impregnation, good stiffness, perfect for corrugation without cracking ✅ High burst strength of 330±50kPa, excellent damage resistance ✅ Stable air permeability and low air resistance for smooth engine air intake ✅ Uniform pore size to ensure stable dust holding capacity ✅ Available in flat sheet, roll and panel forms for corrugating processing ✅ Direct factory supply, stable batch quality, customized sizes & free samples
• Air filters for passenger cars and light vehicles • Light commercial vehicles and small construction machinery • Air filtration for ventilation and small equipment
We are Hebei Oujin Nonwoven Technology Co., Ltd, original filter paper manufacturer. Support trial orders and bulk purchasing. Rolls or sheets available. Free samples for testing.
