OJWK-11516-9003(F7)

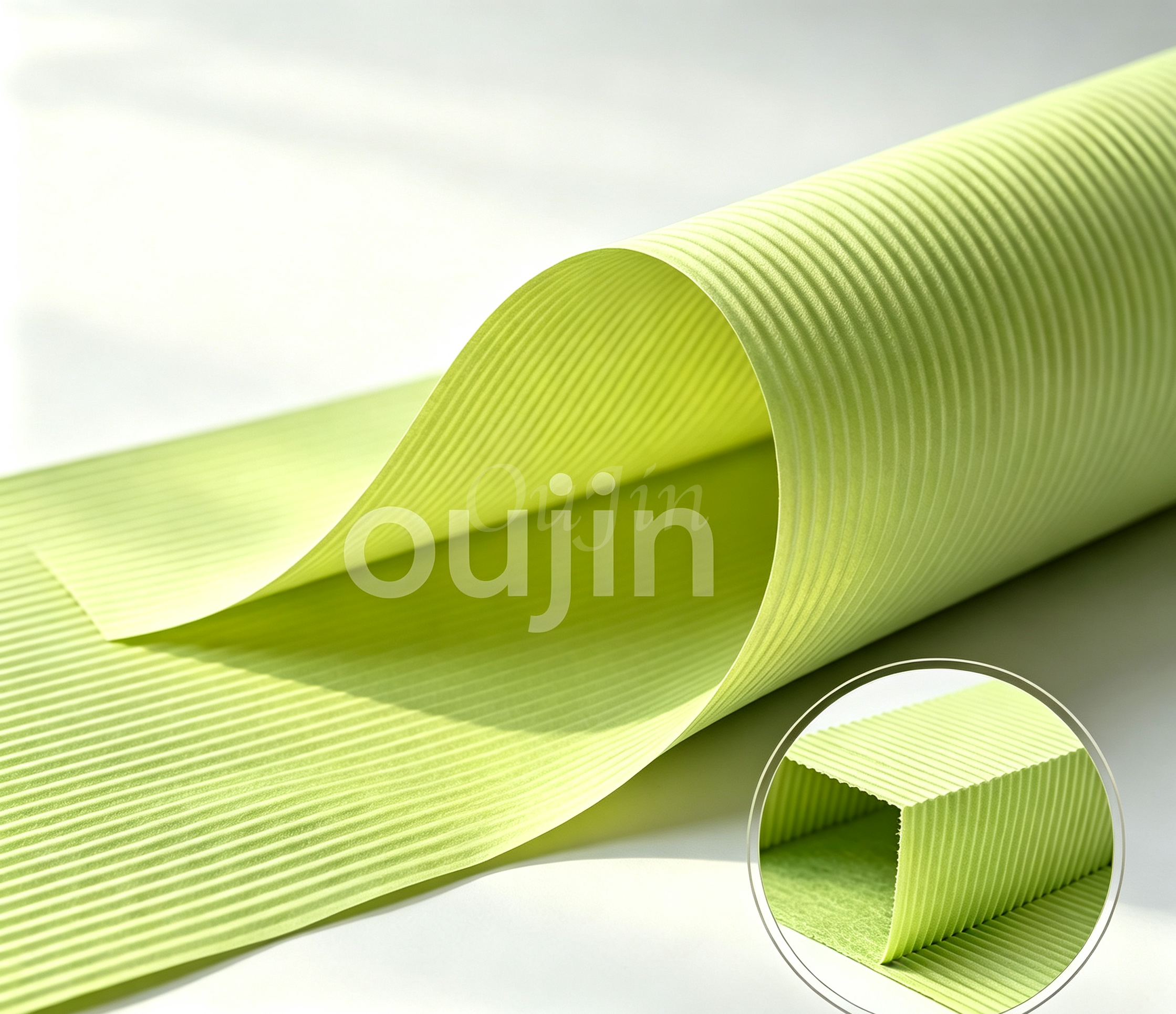

Model OJWK-11516-9003(F7) non-curing acrylic impregnated filter paper is high-performance air filter substrate. Treated with non-curing acrylic resin impregnation and pre-corrugated structure, it has good MD stiffness and fits pleating process well. This filter paper delivers high burst strength, moderate air permeability and uniform pore size distribution with stable dust retention performance. It is widely used for engine air filter elements.
Properties | Value |
|---|---|
Grammage | 115±5 g/㎡ |
Thickness | 0.68±0.05 mm |
Air Permeability | 160±30L/(m²·s @200pa) |
Max. Pore Size | 40±5μm |
Average Pore Size | 35±5μm |
Burst Strength | 350±50kPa |
Stiffness(MD) | 6.5±0.5mN·m |
Corrugation Depth | 0.45±0.05mm |
✅ Adopts non-curing impregnation process with pre-corrugated shape, stable pleating and anti-cracking ✅ Burst strength up to 350±50kPa, excellent resistance to impact and damage ✅ Balanced air permeability with proper air intake resistance to ensure smooth engine air intake ✅ Uniform and controllable pore size for stable dust capture and retention ✅ Rolls and sheets available for slitting and pleating processing ✅ Direct supply from manufacturer, stable batch quality, custom specifications & free samples
• Air filters for passenger cars and light-duty vehicles • Air filtration for light commercial vehicles & small construction machinery • Air purification for ventilation systems and small industrial equipment
We are Hebei Oujin Nonwoven Technology Co., Ltd, a professional filter paper manufacturer. We support trial orders and bulk orders. Rolls and sheets are available, free samples can be sent for performance testing.
