OJWJ-13043/W1202

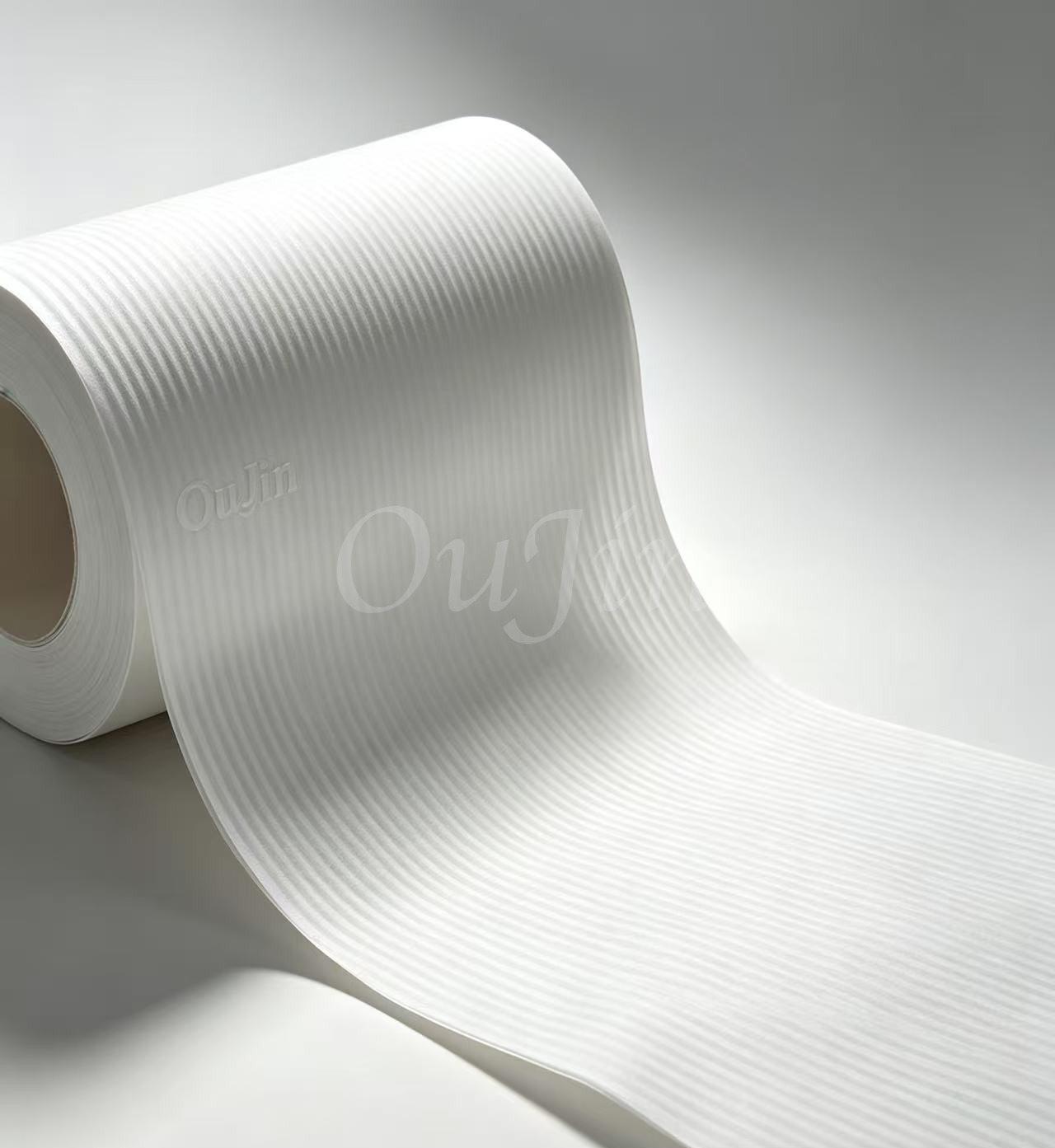

Model OJWJ-13043/W1202 non-cured acrylic impregnated filter paper is corrugated filter media. Treated with acrylic resin non-curing process, it has longitudinal stiffness of 9±1mN·m and corrugation depth of 0.30±0.05mm. It has good burst strength, high air flow and stable contaminant holding capacity, widely used for oil filter elements.
Property | Value |
|---|---|
Grammage | 130±5 g/m² |
Thickness | 0.65±0.05 mm |
Air Permeability | 430±30 L/(m²·s @200pa) |
Max Pore Size | 90±5 μm |
Mean Pore Size | 85±5 μm |
Burst Strength | 300±50 kPa |
Stiffness (MD) | 9±1 mN·m |
Corrugation Depth | 0.30±0.05mm |
Product Advantages
✅ Non-cured impregnation, high stiffness, stable forming with corrugated structure
✅ Burst strength 300±50kPa, good damage resistance
✅ High air permeability, low fluid resistance for smooth oil circulation
✅ Uniform pore size for stable contaminant retention
✅ Rolls and sheets available for slitting processing
✅ Direct factory supply, stable batch quality, custom sizes and free samples available
Application
Oil filters for passenger cars and light vehicles
Oil filter elements for light commercial vehicles and engineering machinery
