OJPK-12533/9201

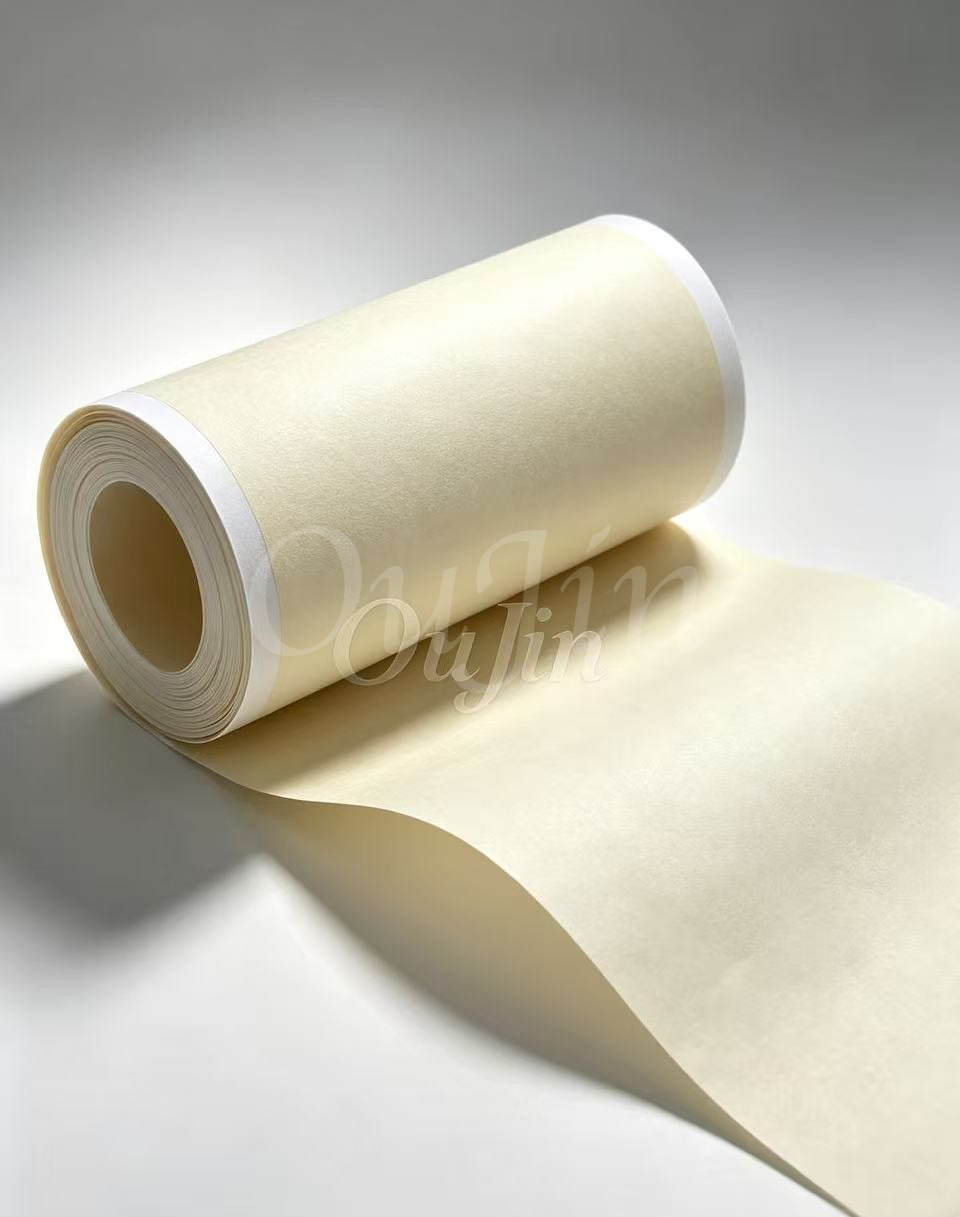

Model OJPK-12533/9201 acrylic resin impregnated filter paper is a plain filter substrate. Treated with acrylic resin impregnation, it has a longitudinal stiffness of 6±0.5 mN·m and flat surface without corrugation. It features excellent burst strength, high air permeability and stable dust retention performance, widely used in automotive air filter elements.
Property | Value |
|---|---|
Grammage | 125±5 g/m² |
Thickness | 0.45±0.05 mm |
Air Permeability | 330±30 L/(m²·s @200pa) |
Max Pore Size | 85±5 μm |
Mean Pore Size | 80±5 μm |
Burst Strength | 400±50 kPa |
Stiffness (MD) | 6±0.5 mN·m |
Corrugation Depth | Plain |
Product Advantages
✅ Acrylic resin impregnated plain filter paper with excellent cutting and processing performance
✅ Burst strength 400±50kPa, outstanding damage resistance
✅ High air permeability and low air intake resistance to ensure smooth engine air intake
✅ Uniform pore size for stable dust retention
✅ Available in rolls and sheets for filter element forming
✅ Direct factory supply, stable batch quality, custom sizes and free samples available
Application
Air filters for passenger cars and light vehicles
Air filtration for light commercial vehicles and small construction machinery
