OJ-8010

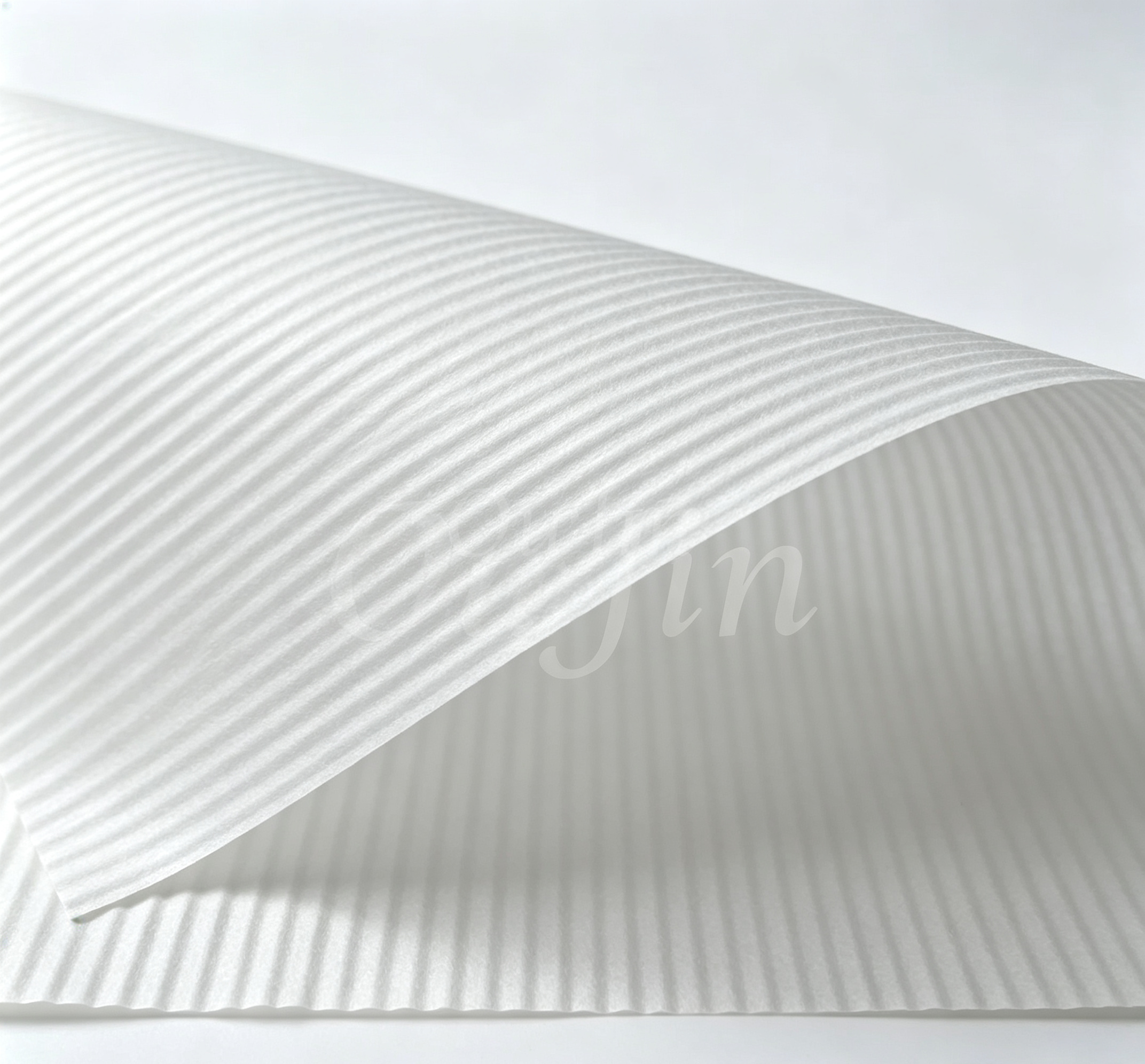

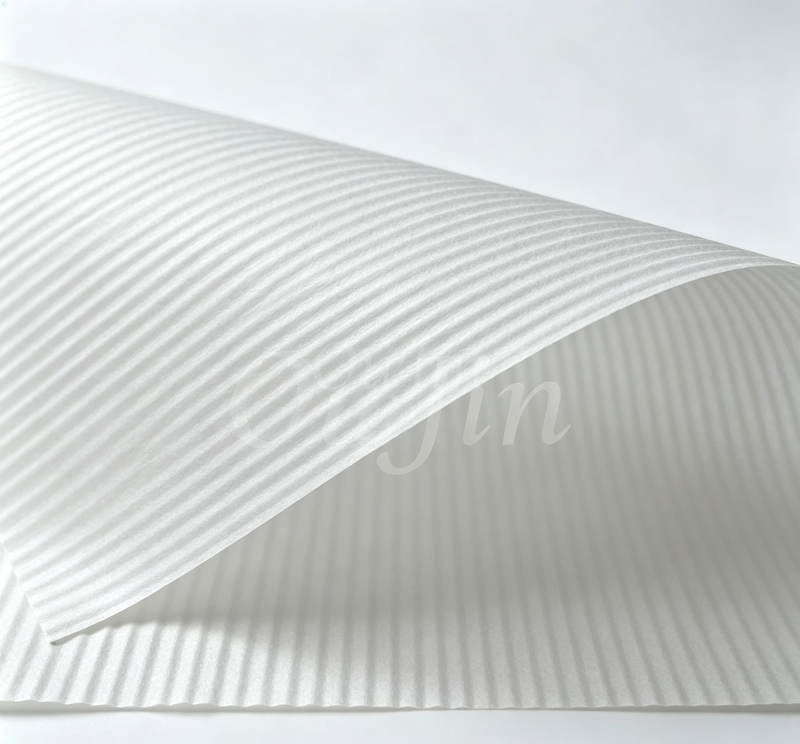

Model OJ-8010 non-curing acrylic impregnated filter paper is a plain filter media. Treated with acrylic resin by non-curing process. It has grammage of 120±5g, excellent rigidity, high burst strength, stable pore size and good air permeability. It is not easy to crack during pleating processing, which is an ideal raw material for automotive and construction machinery air filters.
Property | Value |
|---|---|
Grammage | 120±5 g/m² |
Thickness | 0.75±0.05 mm |
Air Permeability | 170±30 L/(m²·s@200pa) |
Max Pore Size | 80±5 μm |
Pore Size | 75±5 μm |
Burst Strength | 380±50 kpa |
Stiffness (MD) | 8±1 mN·m |
Corrugation Depth | 0.3±0.05 mm |
✅Non-curing acrylic impregnation, anti-crack during pleating, fine workmanship ✅120g grammage, good MD stiffness for perfect pleat forming ✅High burst resistance 380±50kPa, anti-break function under working pressure ✅Uniform pore size, great dust holding capacity and stable air flow resistance ✅Plain base paper, easy for slitting and pleating, available in rolls and sheets ✅Direct supply from factory, stable mass production, custom sizes & free samples
Air filters for passenger cars and trucks
Air filtration system for construction machinery, generator sets and air compressors
Industrial dust removal and ventilation air filtration
We are Hebei Oujin Nonwoven Technology Co., Ltd, original filter paper manufacturer. Trial orders and bulk orders are supported. Rolls & sheets with slitting available. Free samples for your testing.
