PK-130-350A

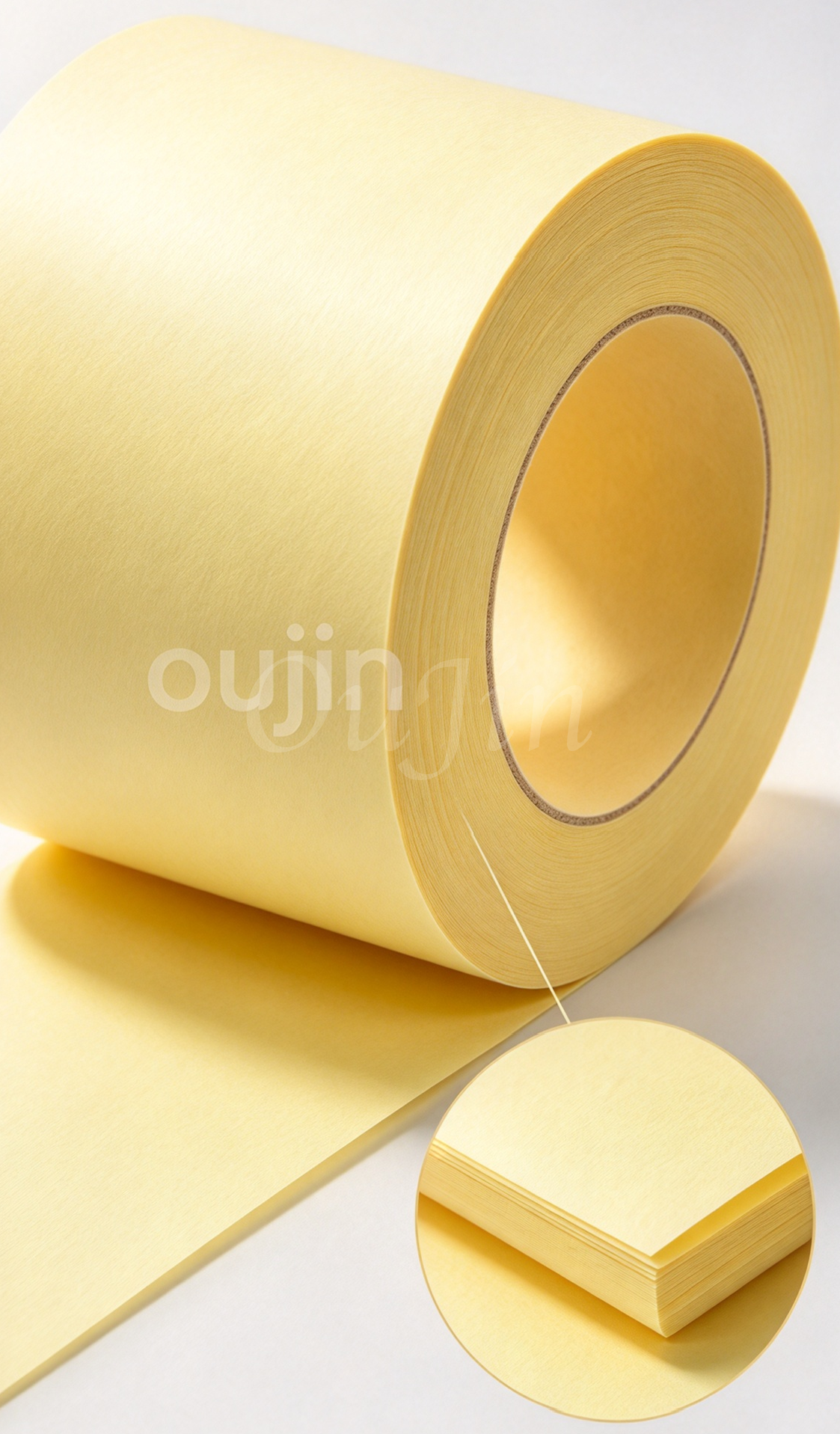

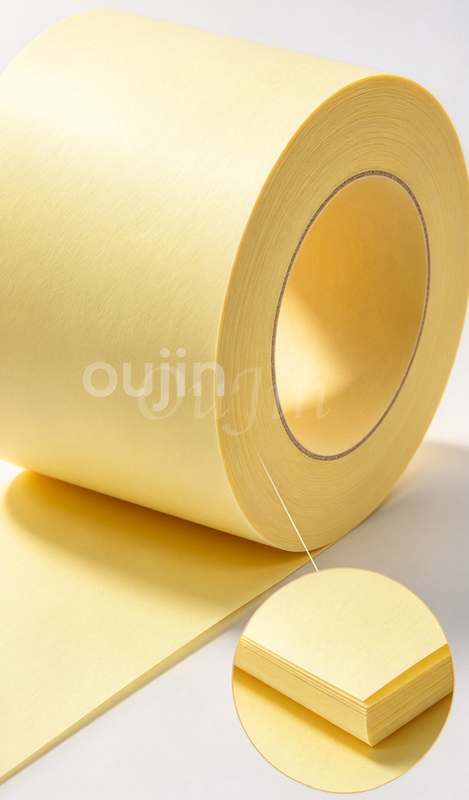

Model PK-130-350A non-curing acrylic impregnated filter paper is plain air filter media. Treated by non-curing acrylic resin impregnation, the substrate has good stiffness and is suitable for pleating processing. The filter media features excellent burst resistance, stable air permeability and uniform pore distribution to capture dust particles efficiently. It is widely used for manufacturing engine air filter elements.
Property | Value |
|---|---|
Grammage | 130±5g/㎡ |
Thickness | 0.44±0.05mm |
Air Permeability | 350±50L/(m²·s) (P=200pa) |
Max. pore Size | 90±5μm |
Pore Size | 85±5μm |
Burst Strength | 300±50kPa |
Stiffness(MD) | 6±1mN·m |
Corrugation Depth | Plain |
✅ Adopts non-curing acrylic impregnation technology. The flat substrate won’t crack easily during pleating. Burst strength reaches 300±50kPa with good impact and damage resistance. Stable air permeability maintains proper intake resistance to guarantee sufficient air supply for engines. Uniform & controllable pore size captures dust steadily for reliable filtration. ✅ Available in rolls and sheets. Direct factory supply with consistent batch quality. Custom specifications supported, free samples for testing.
• Air filters for passenger cars and light vehicles • Air filtration for light commercial vehicles & small construction machinery • Air purification for ventilation systems and large fans
We are Hebei Oujin Nonwoven Technology Co., Ltd., a professional filter paper manufacturer. Trial orders and bulk orders are both acceptable. We supply filter paper in rolls and sheets, and free samples can be sent for performance testing.
