OFD13050-Y103-P

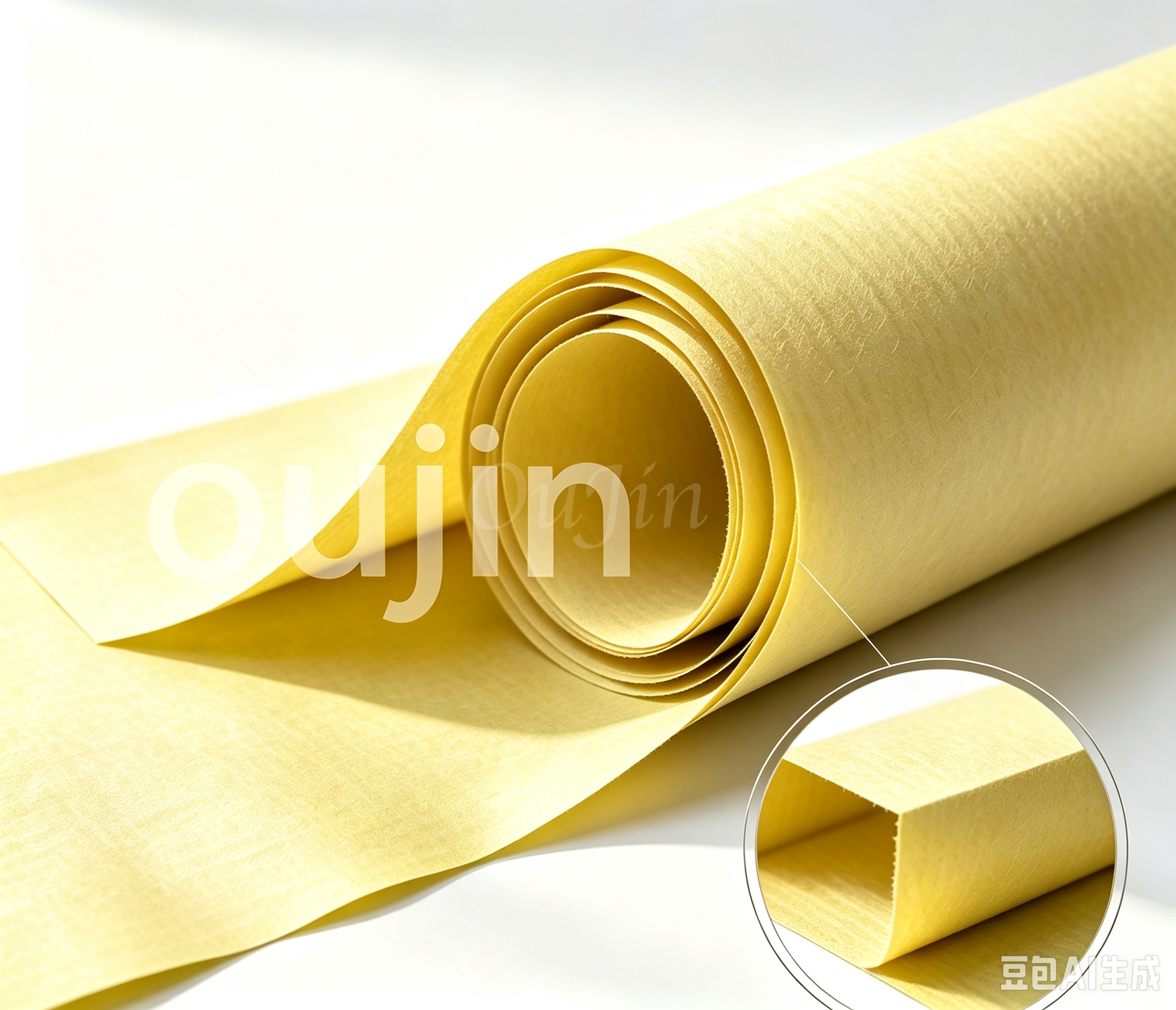

Model OFD13050-Y103-P non-curing acrylic impregnated filter paper is a flat air filter media. Treated with non-curing acrylic resin impregnation, it features smooth and flexible texture, suitable for pleating processing. The filter media boasts excellent burst resistance, stable air permeability and uniform pore size distribution, achieving reliable dust retention. It is widely used for manufacturing engine air filter elements.
Property | Value |
|---|---|
Grammage | 130±5g/㎡ |
Thickness | 0.4±0.05mm |
Air Permeability | 500±50L/(m²·s) (△=200pa) |
Max. pore Size | 97±5μm |
Pore Size | 90±5μm |
Burst Strength | 300±50kPa |
Stiffness(MD) | 2±1mN·m |
Corrugation Depth | / |
✅ Adopts non-curing acrylic impregnation technology. The flat soft substrate resists cracking during smooth pleating. Burst strength reaches 300±50kPa with great impact and damage resistance. Stable air permeability reduces intake resistance to guarantee sufficient air supply for engines. Uniform and controllable pore size stably captures and holds dust, delivering consistent filtration performance. ✅ Supplied in rolls or sheets, direct factory supply with stable batch quality. Custom specifications available, free samples offered for testing.
• Air filters for passenger cars and light vehicles • Air filtration for light commercial vehicles & small construction machinery • Air purification for ventilation systems and large fans
We are Hebei Oujin Nonwoven Technology Co., Ltd., a professional filter paper manufacturer. Both trial orders and bulk orders are acceptable. We supply filter paper in rolls and sheets, and free samples can be sent for performance testing.
