OKB12520-W31-C

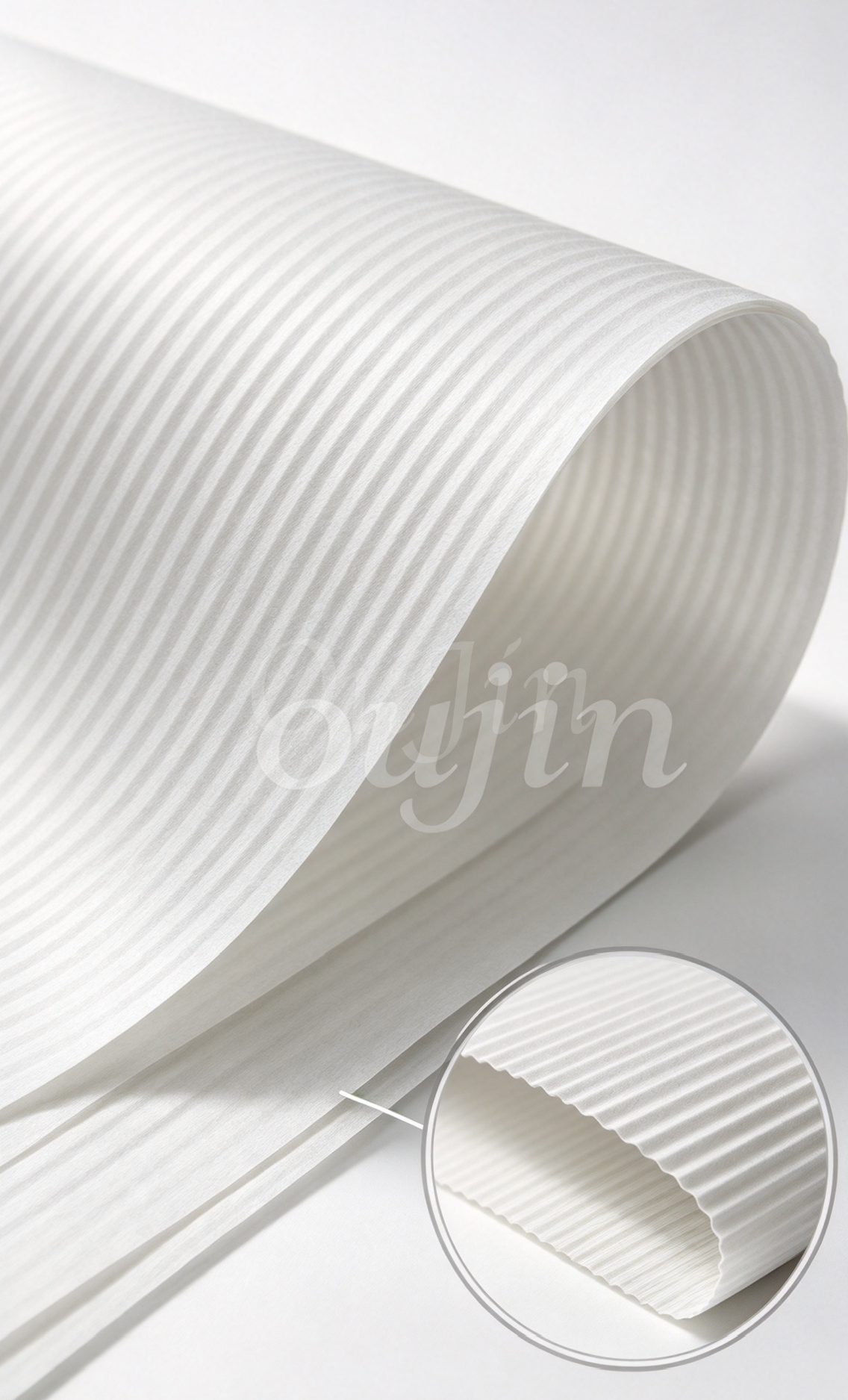

Model OKB12520-W31-C non-curing acrylic impregnated filter paper is corrugated air filter media. Treated with non-curing acrylic resin impregnation, it owns good stiffness and suits pleated filter element processing. The filter media features stable burst resistance and fine uniform pore size, which efficiently traps fine dust. It is widely used for manufacturing engine air filter elements.
Property | Value |
|---|---|
Grammage | 128±5g/㎡ |
Thickness | 0.74±0.05mm |
Air Permeability | 220±30L/(m²·s) (P=200pa) |
Max. pore Size | 65±5μm |
Pore Size | 60±5μm |
Burst Strength | 230±50kPa |
Stiffness(MD) | 7±1.5mN·m |
Corrugation Depth | 0.45±0.05mm |
✅ Adopts non-curing acrylic impregnation technology. The substrate has great stiffness for stable pleating. Burst strength reaches 230±50kPa, resistant to impact and damage. Stable air permeability, and corrugated design expands filtration area. Fine & even pores effectively capture tiny dust with high filtration precision. ✅ Available in rolls and sheets. Direct factory supply with stable batch quality. Custom specifications supported, free samples available for testing.
• Air filters for passenger cars and light vehicles • Air filtration for light commercial vehicles & small construction machinery • Air purification for ventilation systems and large fans
We are Hebei Oujin Nonwoven Technology Co., Ltd., professional filter paper manufacturer. Trial orders and bulk orders are both acceptable. We supply filter paper in rolls and sheets, and free samples can be sent for performance testing.
