HXKP-9200

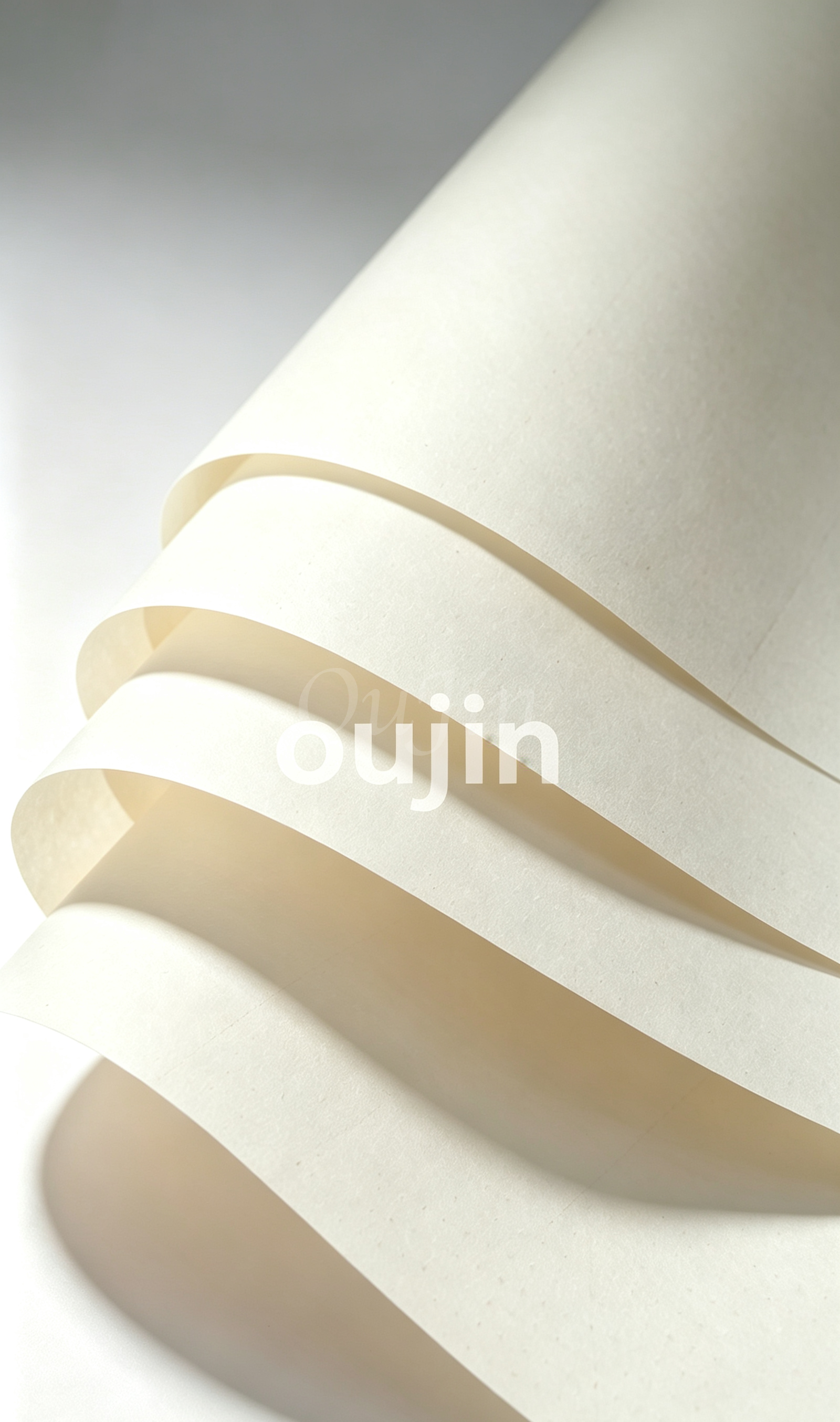

Model HXKP-9200 acrylic impregnated filter paper is general air filter media. Treated with acrylic resin impregnation, grammage 140g/㎡, stiffness 8.1mN.m, suitable for pleating process. It features high burst strength, high airflow and stable dust holding performance, widely used for air filter elements.
Property | Value |
|---|---|
Grammage | 140 g/㎡ |
Thickness | 0.54 mm |
Air Permeability | 360 L/(m²·s @200pa) |
Max Pore Size | 66 μm |
Mean Pore Size | 62 μm |
Burst Strength | 330 kpa |
Stiffness | 8.1 mN.m |
Corrugation Depth | ---- |
✅Acrylic impregnated treatment, high stiffness, stable pleating without collapsing ✅High burst strength of 330kPa, excellent damage resistance ✅High air permeability, low air intake resistance for smooth engine air supply ✅Uniform pore size to realize stable dust retention ✅Available in rolls and sheets for slitting and pleating ✅Direct factory supply with stable batch quality, custom sizes and free samples
• Air filters for passenger cars and light vehicles • Light commercial vehicles and small construction machinery • Air filtration for ventilation and small equipment
We are Haoxin Non-woven Products Technology Co., Ltd, original filter paper manufacturer. Trial orders and bulk purchases are supported. Rolls and sheets can be cut, free samples available for testing.
